Rear Spoiler (Overview)

Rear Spoiler

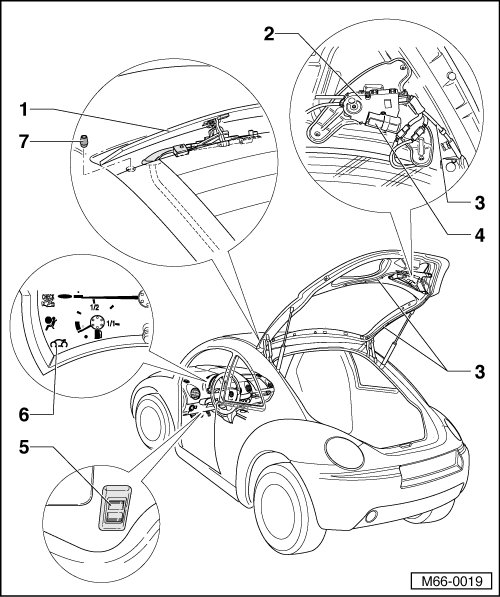

Rear Spoiler Assembly Overview





1 Rear Spoiler - Installation Unit

• With links, guide tubes and cables

• Grease link guides using (G 000 450 02)

• Removing and installing, refer to => [ Rear Spoiler Installation Unit ] Rear Spoiler

• Parallel movement, checking and adjusting refer to => [ Parallel Movement, Checking and Adjusting ] Parallel Movement, Checking and Adjusting

2 Rear Spoiler Control Module (J223)

• Self-diagnosis, refer to diagnostic tool

• Removing and installing, refer to => [ Rear Spoiler Motor ] Rear Spoiler

3 Lower guide tubes

• Removing and installing, refer to=> [ Lower Cable Guide Tubes ] Rear Spoiler

4 Rear Spoiler Motor (V52)

• Removing and installing, refer to => [ Rear Spoiler Motor ] Rear Spoiler, rear spoiler drive, removing and installing

5 Rear Spoiler Switch (E127)

• Below instrument panel near steering column

• For raising and lowering rear spoiler "manually", refer to => [ Manual Rear Spoiler, Raising and Lowering ] Manual Rear Spoiler, Raising and Lowering

6 Rear spoiler adjustment warning lamp

7 Rubber buffer
