Power Window Regulator Switches In Driver's Door, Removing and Installing

Power Window Regulator Switches In Driver's Door, Removing And Installing

NOTE: Power Window Regulator Switches in driver's door cannot be removed or serviced separately. In case of malfunctions, the complete switch module must be replaced.

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing

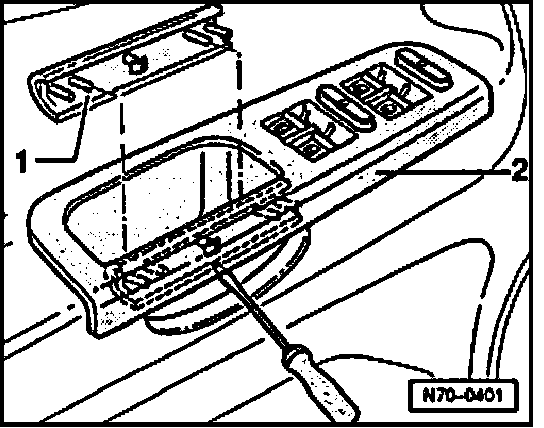

- Carefully unclip handle -1- from armrest trim -2-.







- Carefully unclip rear section of armrest trim with switch module upwards -arrow- from retainer -1-.

CAUTION: Ensure retainer -1- is not damaged upon removal.

- Disconnect electrical connector -3-.

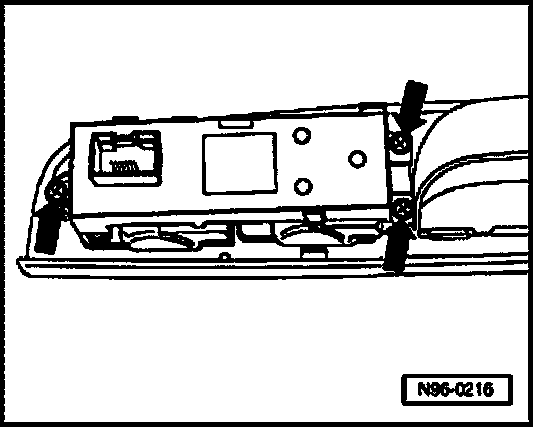

- Remove screws -arrows- and remove switch module.

Installing
Install in reverse order of removal.
