Component Overview

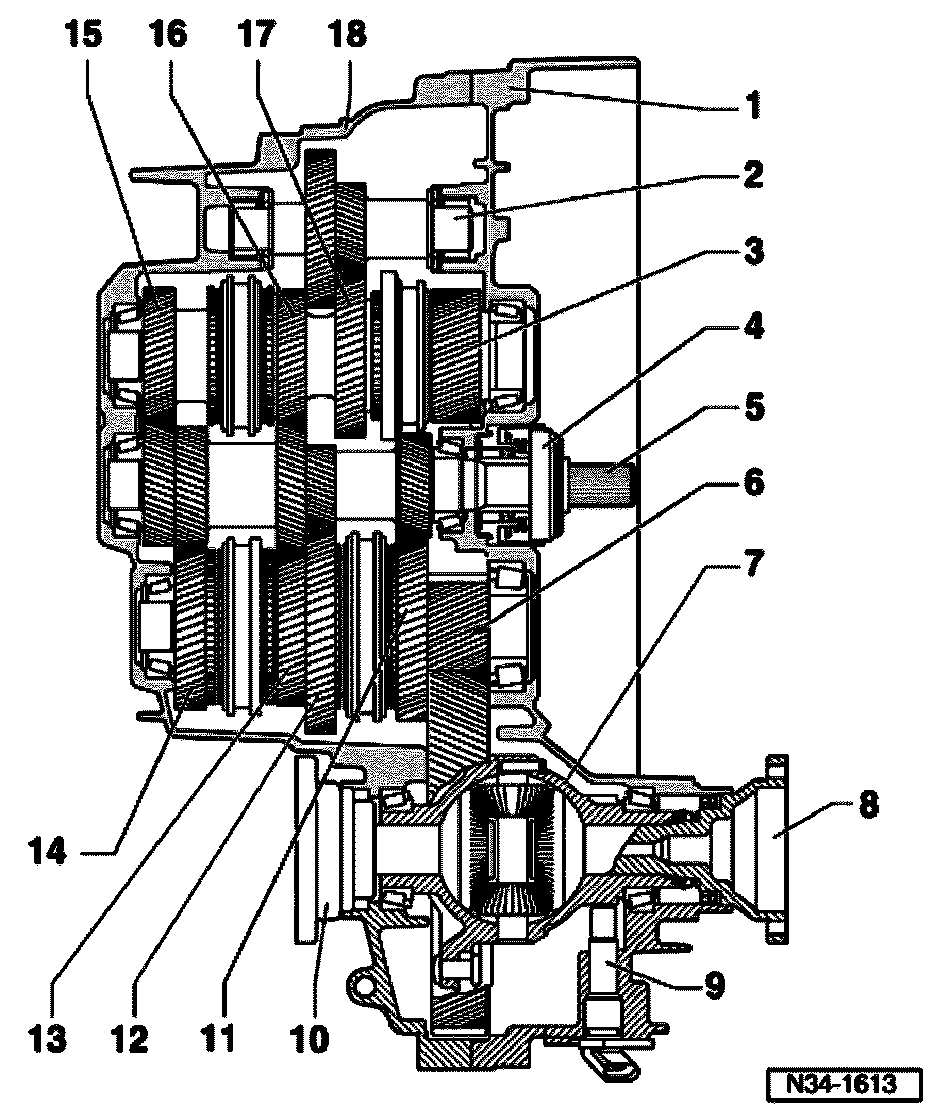

Component overview, 02M, 5 and 6 Spd. M/T
1 - Clutch housing
2 - Reverse shaft
3 - Output shaft for 5th, 6th and reverse gear
4 - Slave cylinder with release bearing
5 - Input shaft
6 - Output shaft for 1st-4th gear
7 - Differential
8 - Flanged shaft, right
9 - Speedometer sender





10 - Flanged shaft, left
11 - 2nd gear
12 - 1st selector gear
13 - Selector gear for 4th gear
14 - Selector gear for 3rd gear
15 - Selector gear for 5th gear
16 - 6th gear wheel
^ Spacer sleeve installed in 5-speed transmission

17 - Reverse sliding gear wheel
18 - Transmission housing
