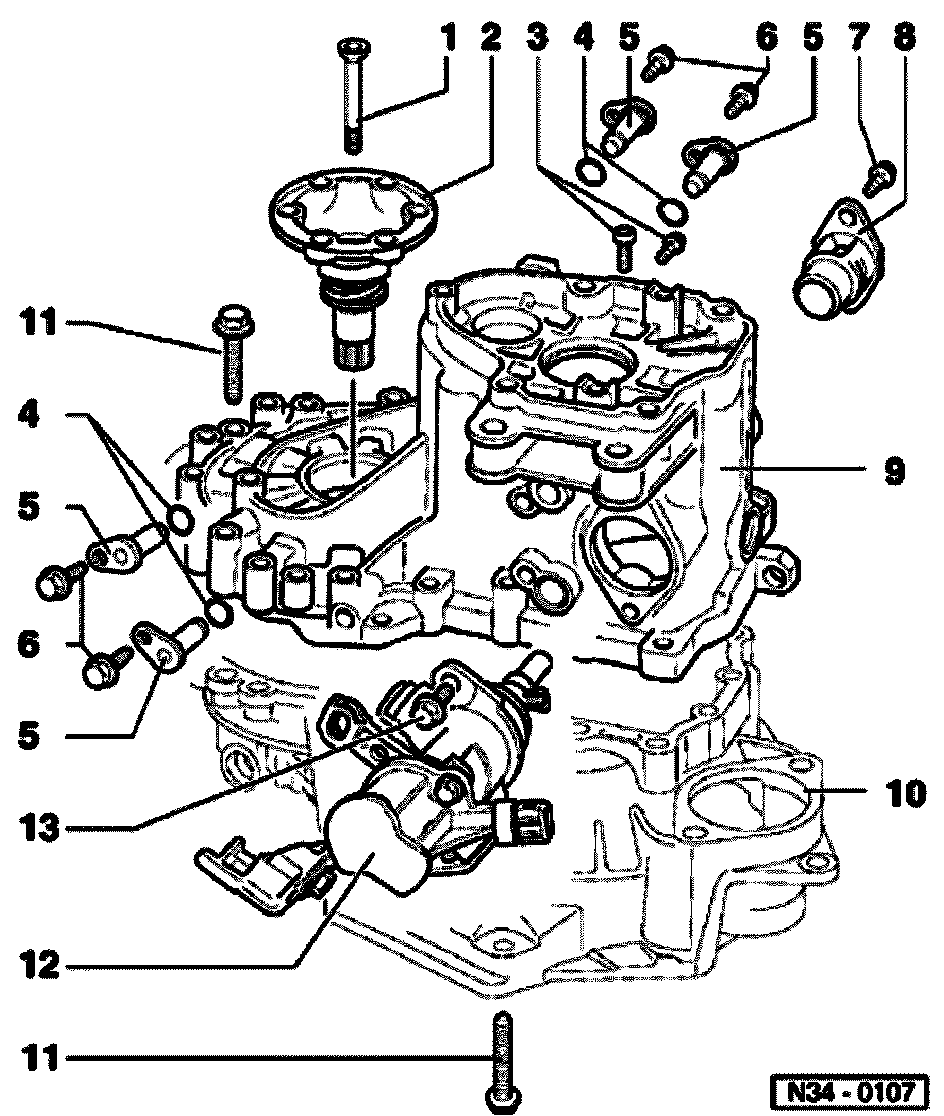

Transmission Housing and Selector Mechanism, Removing and Installing

Transmission housing and selector mechanism, removing and installing, 02J, 5 Spd. M/T





1 - Countersunk head bolt, 25 Nm
2 - Flange shaft with spring
3 - Torx socket head bolt, 30 Nm
^ For reverse shaft support
^ Self-locking
^ Always replace

4 - O-ring
^ Always replace

5 - Pivot pin
6 - Bolt, 25 Nm
7 - Bolt, 25 Nm
8 - Cover plate
9 - Transmission housing
10 - Clutch housing
11 - Hex bolt, 25 Nm then turn 90° further
12 - Selector mechanism
^ From 05.99 a modified selector mechanism has been introduced

13 - Hex bolt, 25 Nm
