02M, 5 and 6 SPD. M/T

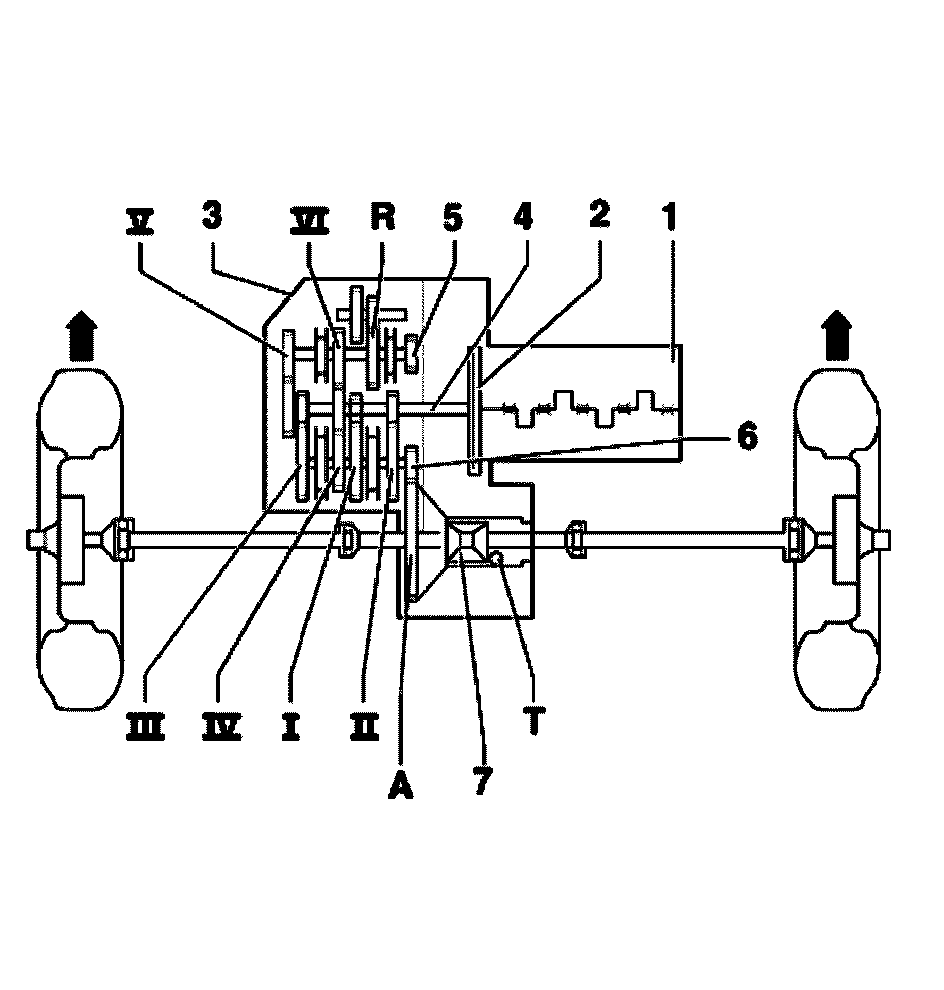

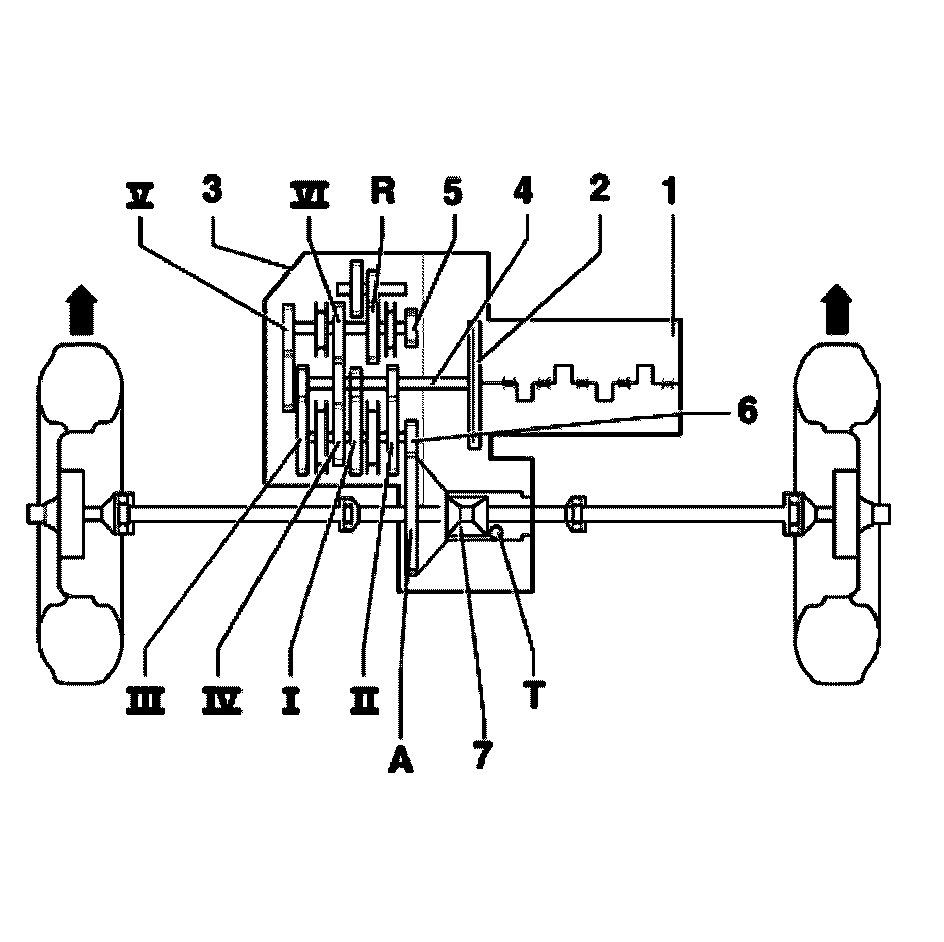

Transmission layout, 02M, 5 and 6 Spd. M/T





Designation
1 - Engine
2 - Clutch
3 - Transmission
4 - Input shaft
5 - Output shaft 5th/6th/reverse gears
6 - Output shaft 1st-4th gears
7 - Differential
Arrows point in direction of travel

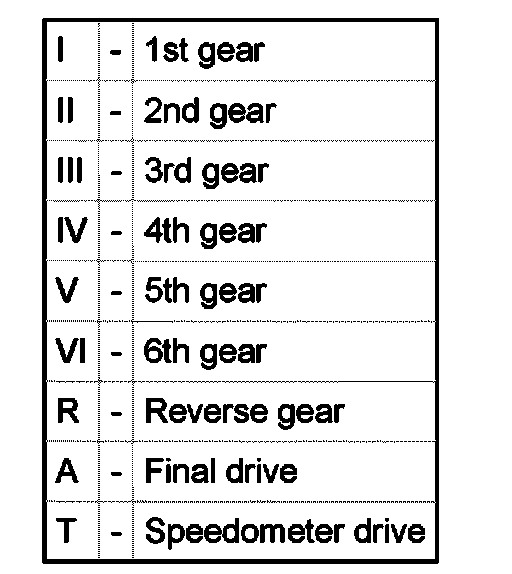

Gear ratios





Arrows point in direction of travel
