Clutch System, Bleeding

Clutch system, bleeding, 02M, 5 and 6 Spd. M/T

Special tools and equipment:

^ VAS 5234 brake filler and bleeder unit for brakes
Brake fluid specification:

Note: Prefilling the system is not necessary!

- Connect VAS 5234 brake filler and bleeder unit.

Note: If necessary, use bleed hose V.A. G 1238IB3 - 670 mm long - to bleed the system.

- Connect bleed hose to brake bleeding appliance collector bottle.

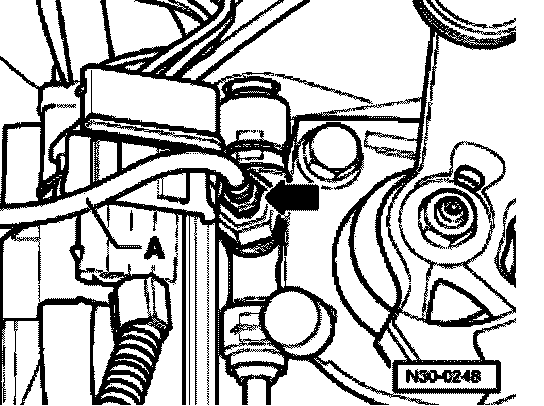

- Connect bleed hose -A- to bleeder (arrow) and open bleeder valve.
- Pressurize system to 2 bar
- Open bleeder valve
- Bleed off about 100 cm3 brake fluid.
- Rapidly operate pedal from stop to stop 10 to 15 times.
- Bleed off an additional 50 cm3 brake fluid.
- Close bleeder valve.
- Depress clutch pedal several times after completion of bleeding process.
