Vehicle Diagnosis, Testing and Information System Vas 5051, Connecting

Vehicle diagnosis, testing and information system VAS 5051, connecting, 01M, 4 Spd. A/T

Special tools and equipment
^ VAS 5051 Vehicle diagnosis, testing and information system





- Connect diagnostic cable connector to Data Link Connector (DLC).

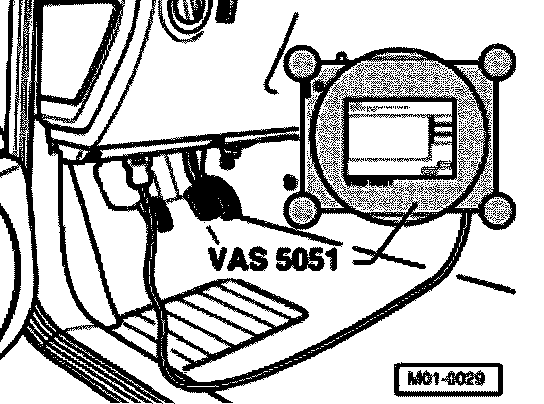

- With ignition switched off, connect tester VAS 5051 to DLC using diagnosis cable VAS 5051/1 or VAS 5051/3.

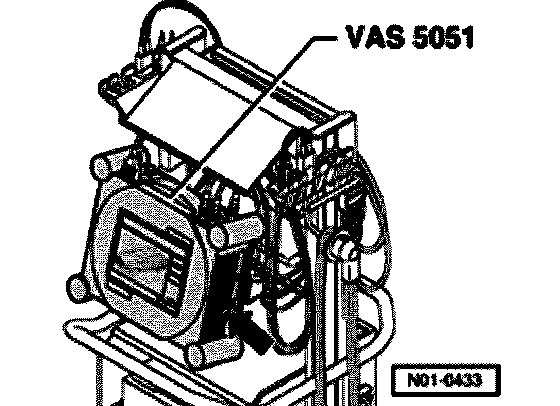

- Switch on tester (arrow).

Note: The tester requires approximately 3 minutes to warm up.

- Switch on ignition.
- Select zone "Vehicle self-diagnosis" on touch screen.
