Home >> Volkswagen >> 2006 >> Golf (1J1) L4-2.0L (AVH) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> Test Tables >> Display Group 002

Display Group 002



01M, 4 Spd. A/T

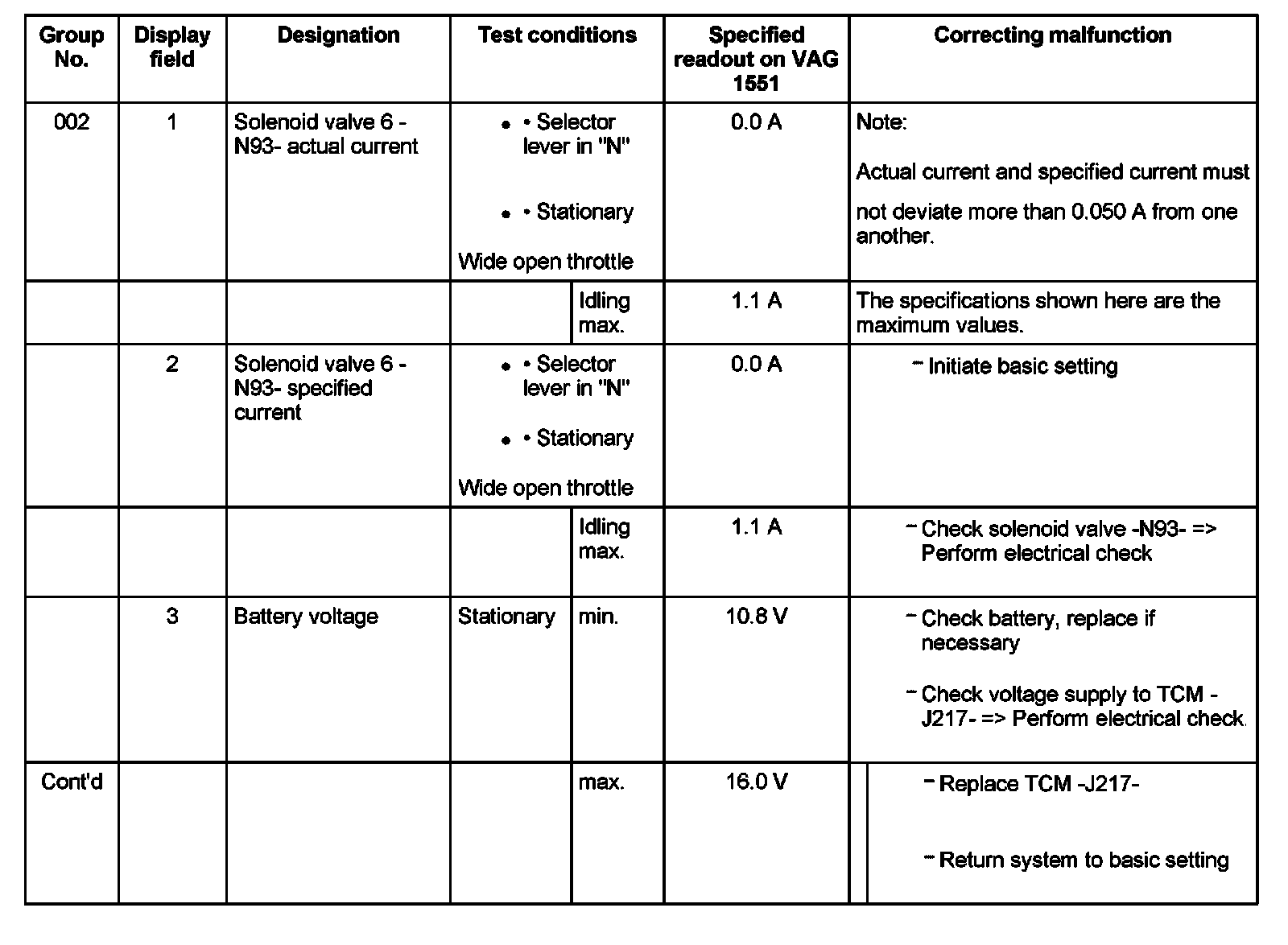

Display Group Number 002, Display Field (1-3):
