Display Group 001



01M, 4 Spd. A/T

Display Group Number 001, Display Field (1):

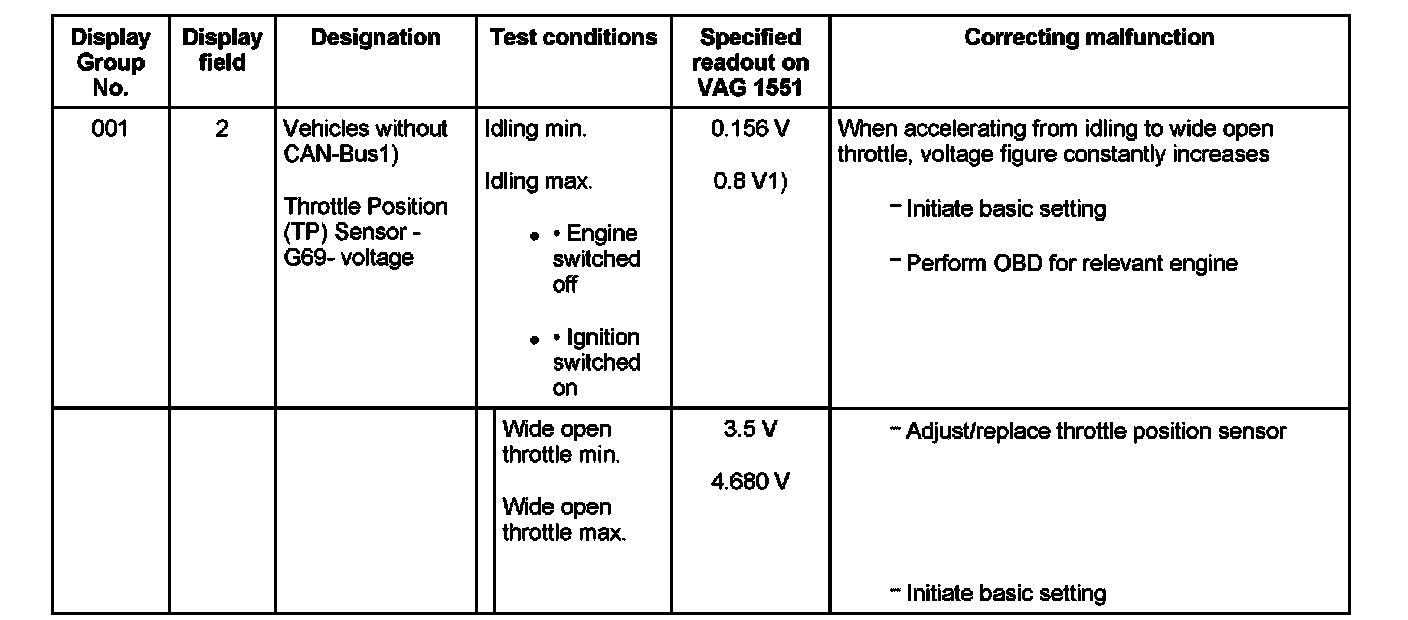

Display Group Number 001, Display Field (2):

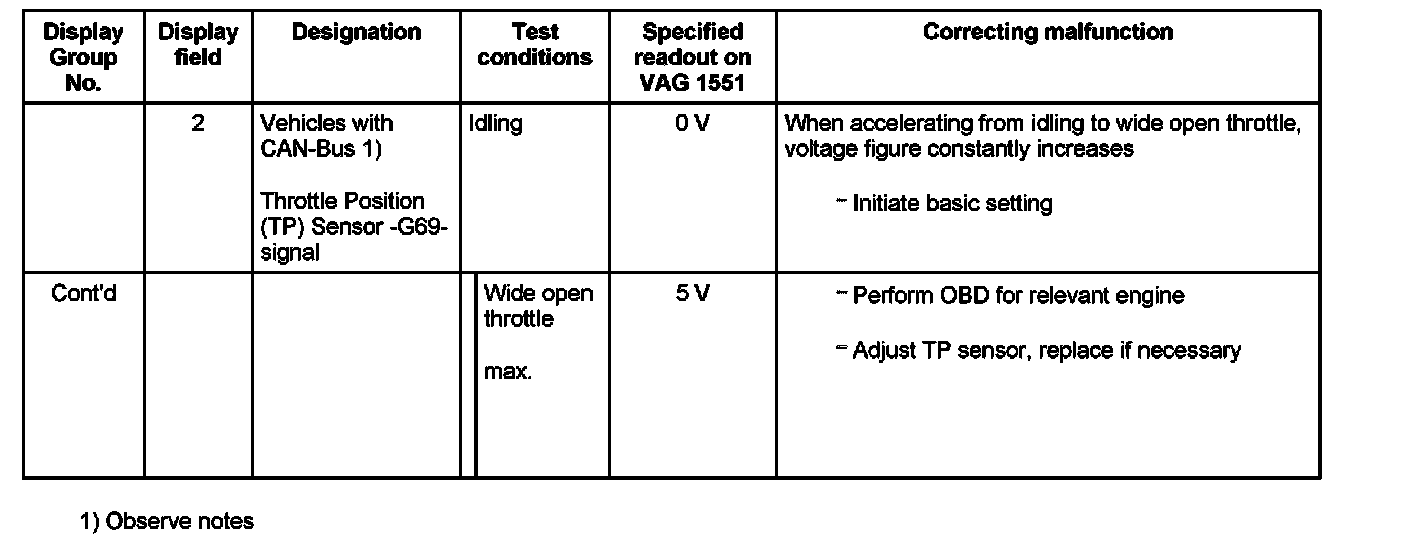

Display Group Number 001, Display Field (2) Continued:

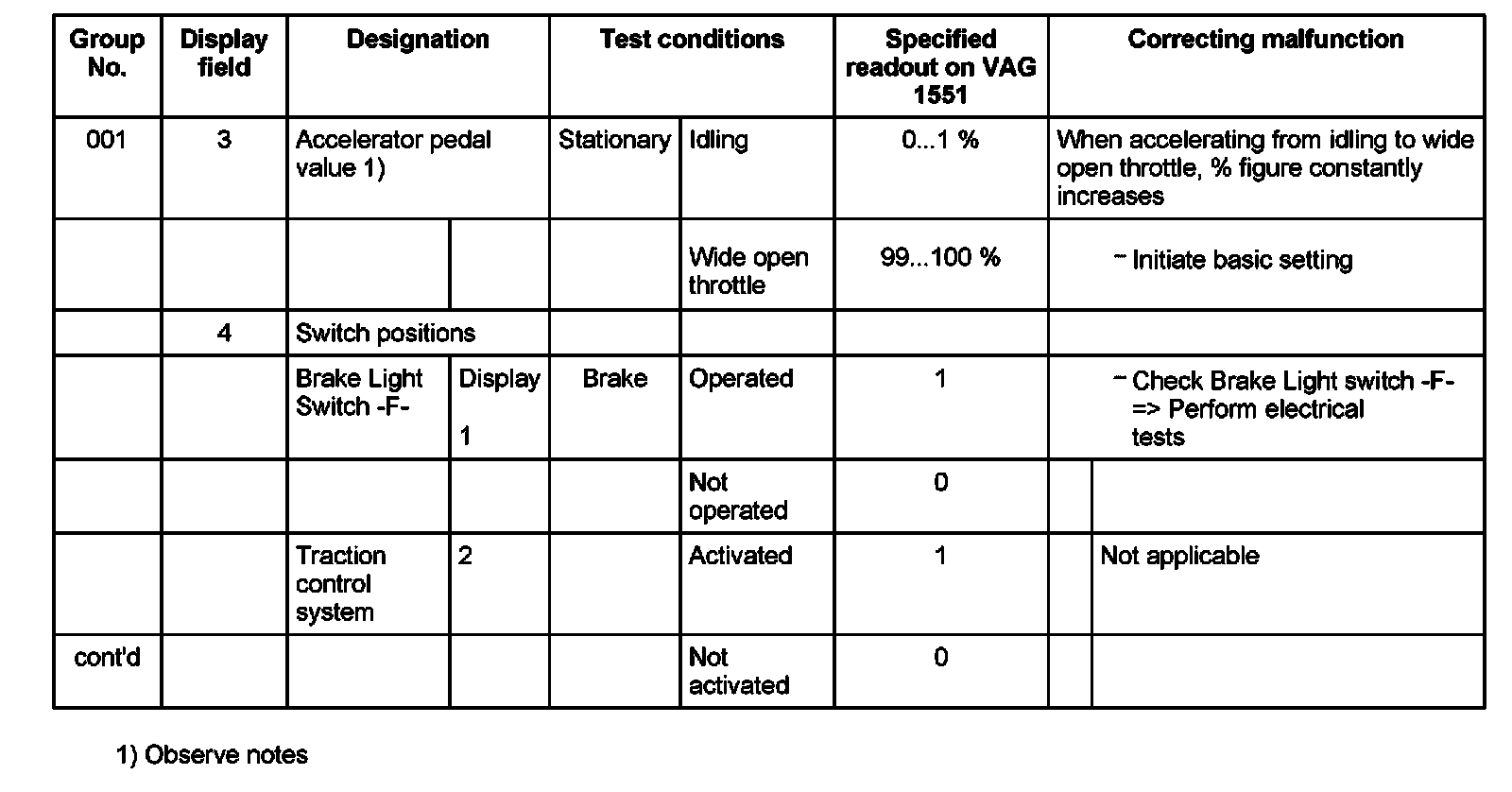

Display Group Number 001, Display Field (3-4):

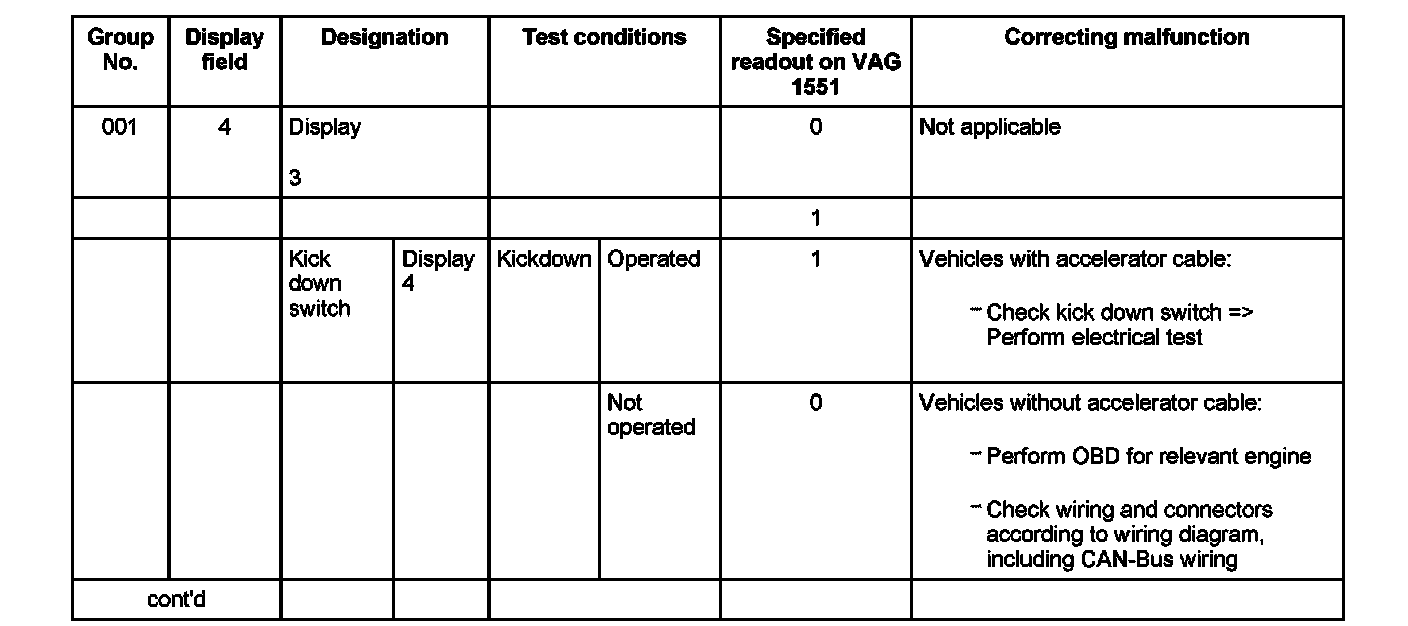

Display Group Number 001, Display Field (4) Continued:

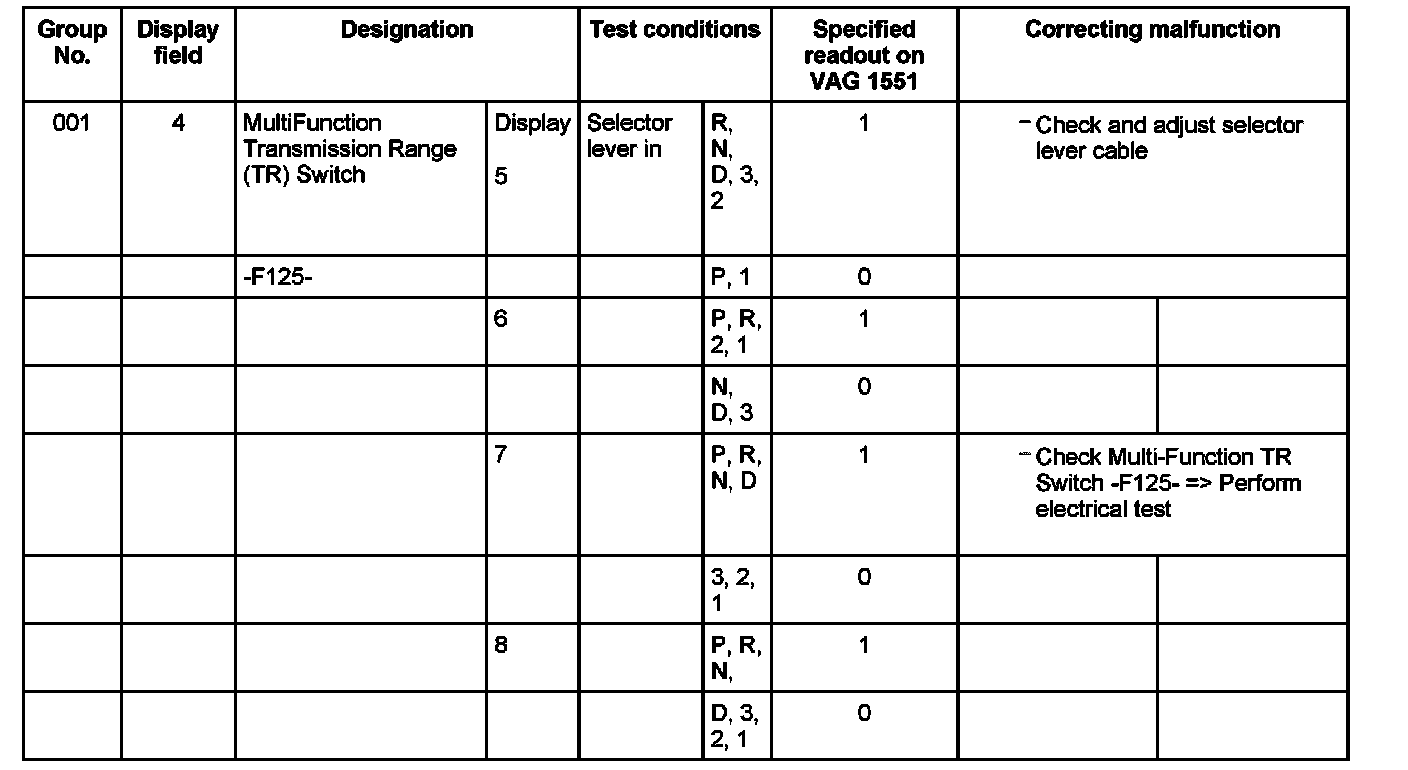

Display Group Number 001, Display Field (4) Continued:
