Displaying & Reading Trouble Codes - 01M, 4 SPD. A/T

Diagnostic Trouble Code (DTC) memory, checking, 01M, 4 Spd. A/T
- Connect VAG 1551 Scan Tool and enter address word 02 Transmission electronics and advance until Select function XX appears in display.

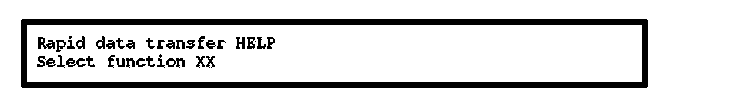

Indicated on display
- Press buttons -0- and -2- to select Check DTC memory function 02.





Indicated on display
- Confirm entry with -Q- button.





The number of stored DTCs or No DTC recognized appears in the display.

The stored DTCs are displayed in turn and printed out.

After the last DTC has been displayed and printed out:
- Correct malfunctions as described in DTC table.
- Press -> button.





Indicated on display

After checking the DTC memory and correcting the malfunctions:
- Erase DTC memory.
