Home >> Volkswagen >> 2006 >> Golf (1J1) L4-2.0L (AVH) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures - 01M, 4 SPD. A/T >> Transmission Control Module (TCM) -J217- 68-Pin Connector Assignment (Socket Numbers on VAG 1598/18)

Transmission Control Module (TCM) -J217- 68-Pin Connector Assignment (Socket Numbers on VAG 1598/18)

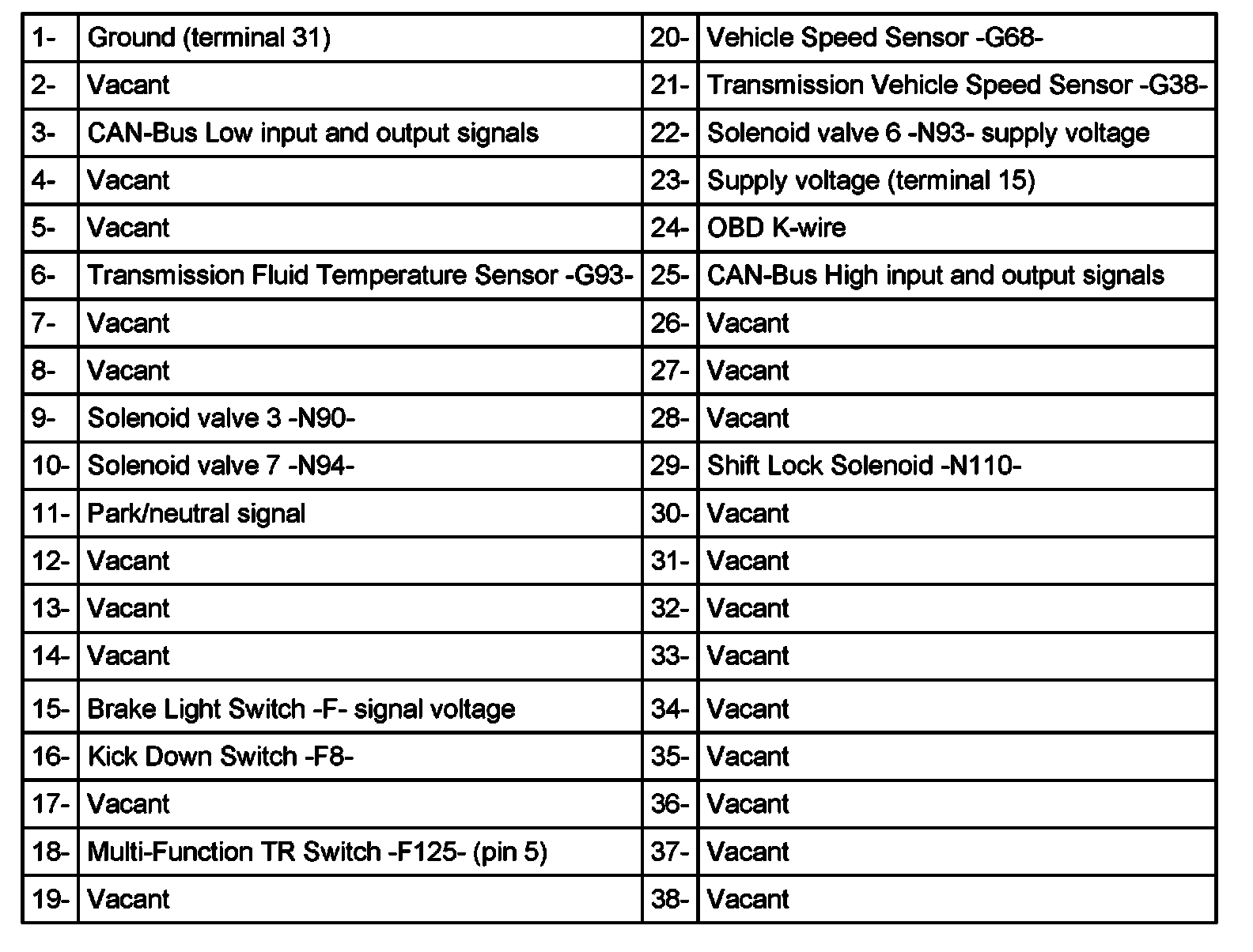

Transmission Control Module (TCM) -J217- 68-pin connector assignment (socket numbers on VAG 1598/18), 01M, 4 Spd. A/T

socket numbers on VAG 1598/18:

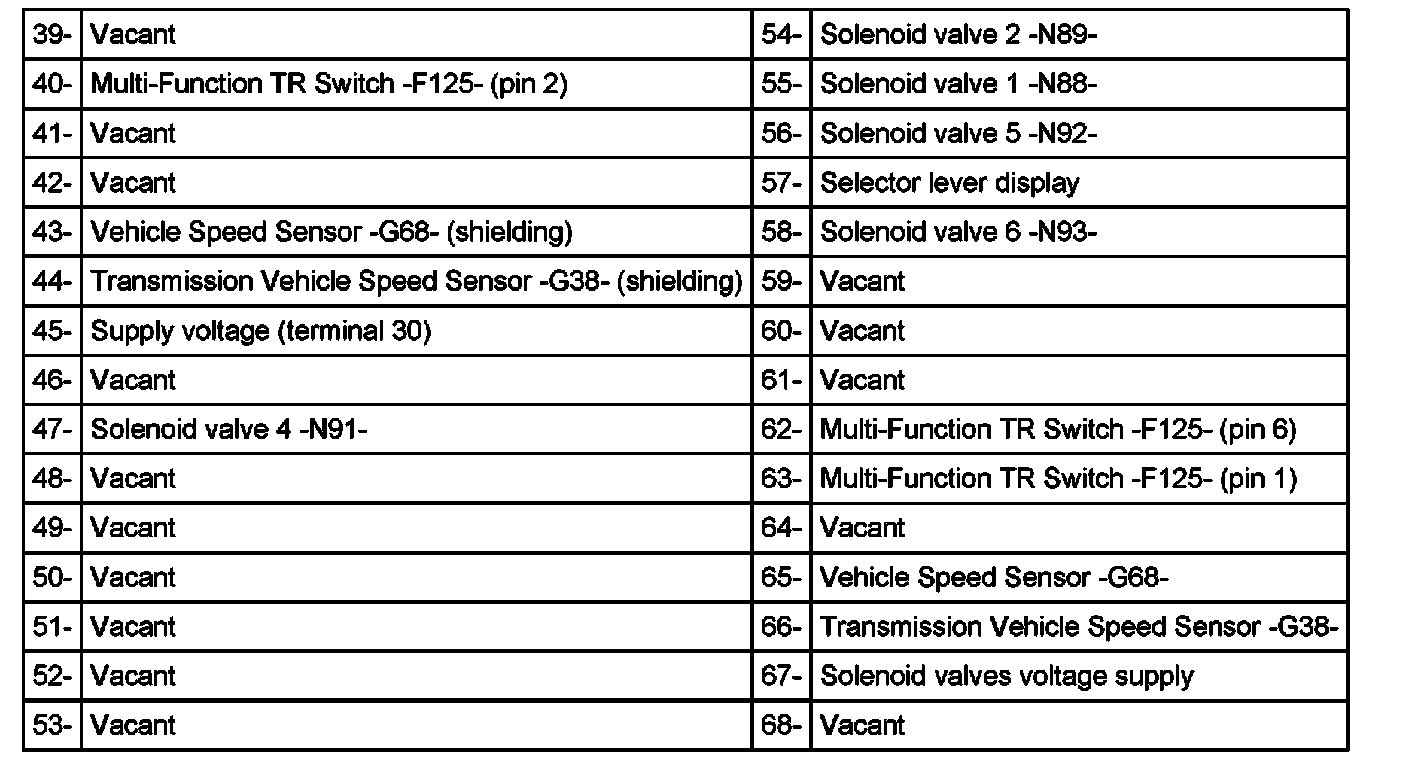

socket numbers on VAG 1598/18:
