FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2006
>>
Golf (1J1) L4-2.0L (AVH)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Non-Trouble Code Procedures - 01M, 4 SPD. A/T
>>
Test Table
>>
Test Steps 3-6
Test Steps 3-6

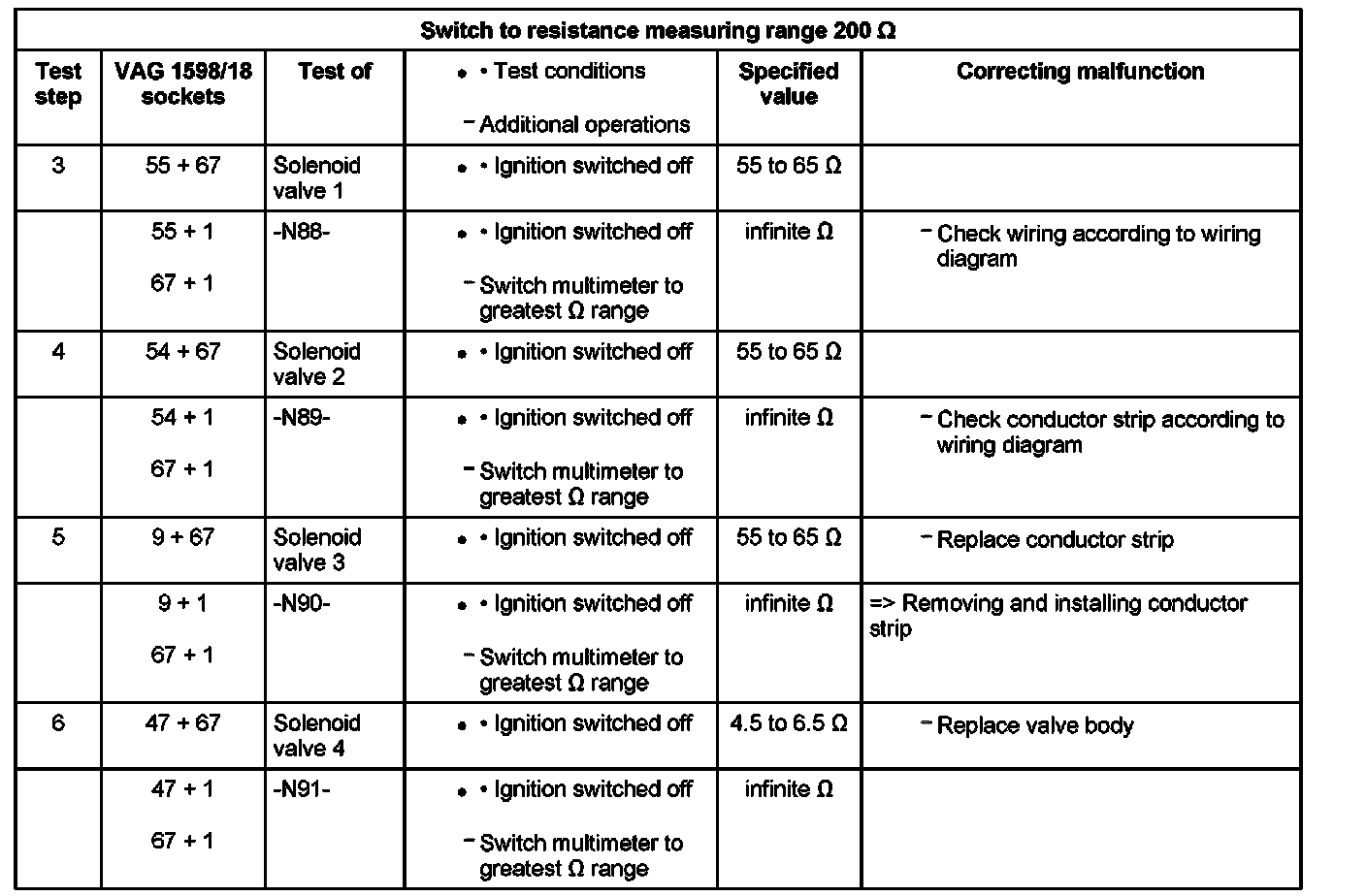

Test Table, Test Step 3-6:
