Test Step 15

Test step 15: Multi-Function Transmission Range (TR) Switch -F125-, 01M, 4 Spd. A/T
- Disconnect connector from multi-function TR switch.

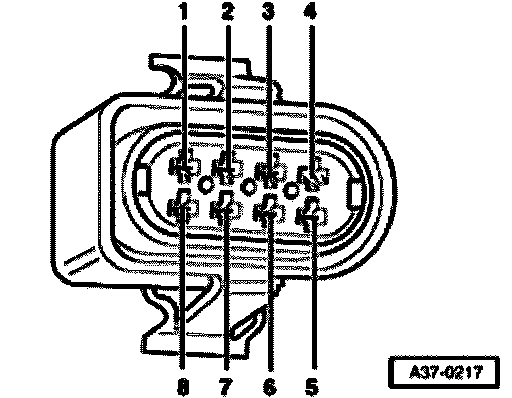

Connector pin assignment
1 - To Pin 63 of TCM connector
2 - To Pin 40 of TCM connector
3 - To pin Pin 1 of TCM connector (Ground)
4 - Vacant
5 - To Pin 18 of TCM connector
6 - To Pin 62 of TCM connector
7 - To Pin 23 of TCM connector (voltage supply terminal 15)

Checking supply voltage.
- Connect test box VAG 1598/18.
- Switch multimeter to 20 Volts measuring range.
- Switch ignition on.

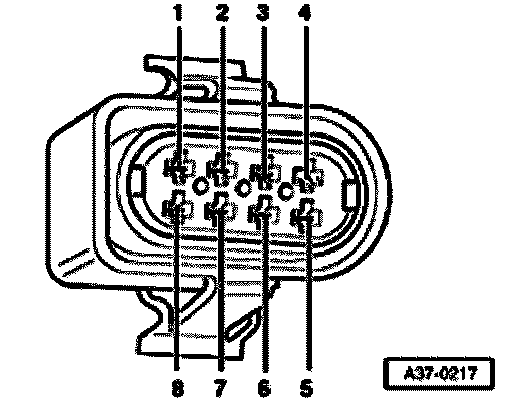

- Measure between terminal 7 and terminal 3 (Ground) on connector disconnected from multi-function TR switch.
Specification: Battery voltage

- Measure from terminal 7 of connector to socket 1 on 1598/18 (Ground).
- Measure from socket 23 (terminal 15) on 1598/18 to socket 1 on 1598/18 (Ground).
Specification: Battery voltage

If the specifications are not obtained:
- Repair wiring according to wiring diagram.

If the specifications are obtained:
- Check wiring further.
- Switch ignition off.
- Disconnect Park/Neutral Position (PNP) relay -J226-.
- Set multimeter to 200 ohms measuring range
Check the wiring between the multi-pin connector on the TCM and the connector on the multi-function TR switch.

- Measure between sockets 1 and 18 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 18 on VAG 1598/18.
Specification: Infinity Ohms

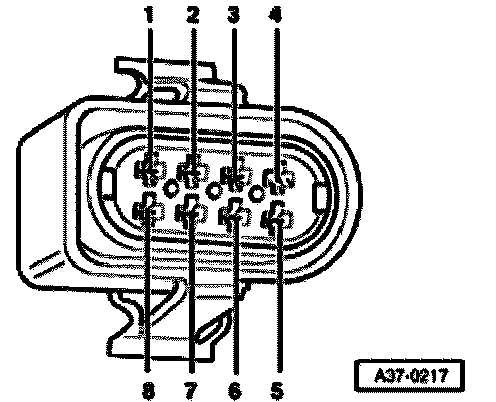

- Measure between socket 18 on VAG 1598/18 and terminal 5 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained:
- Repair wiring according to wiring diagram.

If the specifications are obtained:
- Check wiring further.
- Measure between sockets 1 and 63 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 63 on VAG 1598/18.
Specification: Infinity Ohms

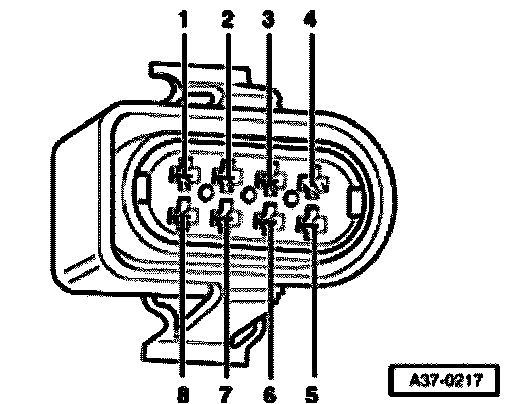

- Measure between socket 63 on VAG 1598/18 and terminal 1 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained:
- Repair wiring according to wiring diagram.

If the specifications are obtained:
- Check wiring further.
- Measure between sockets 1 and 62 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 62 on VAG 1598/18.
Specification: Infinity Ohms

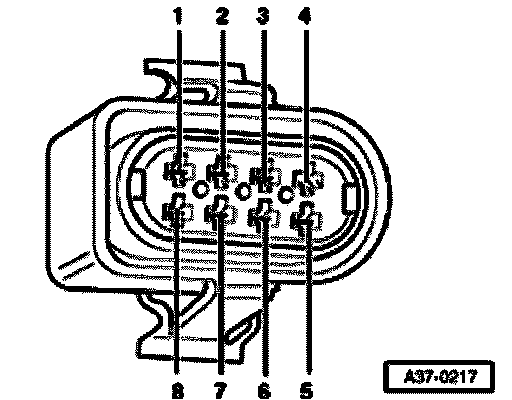

- Measure between socket 62 on VAG 1598/18 and terminal 6 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained:
- Repair wiring according to wiring diagram.

If the specifications are obtained:
- Check wiring further.

- Measure between sockets 1 and 40 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 40 on VAG 1598/18.
Specification: Infinity Ohms





- Measure between socket 40 on VAG 1598/18 and terminal 2 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained:
- Repair wiring according to wiring diagram.

If the specifications are obtained:
- Replace multi-function TR switch.
- Install Park/Neutral Position (PNP) relay -J226-.
