Component Tests - 01M, 4 SPD. A/T

Transmission, electrical check, 01M, 4 Spd. A/T

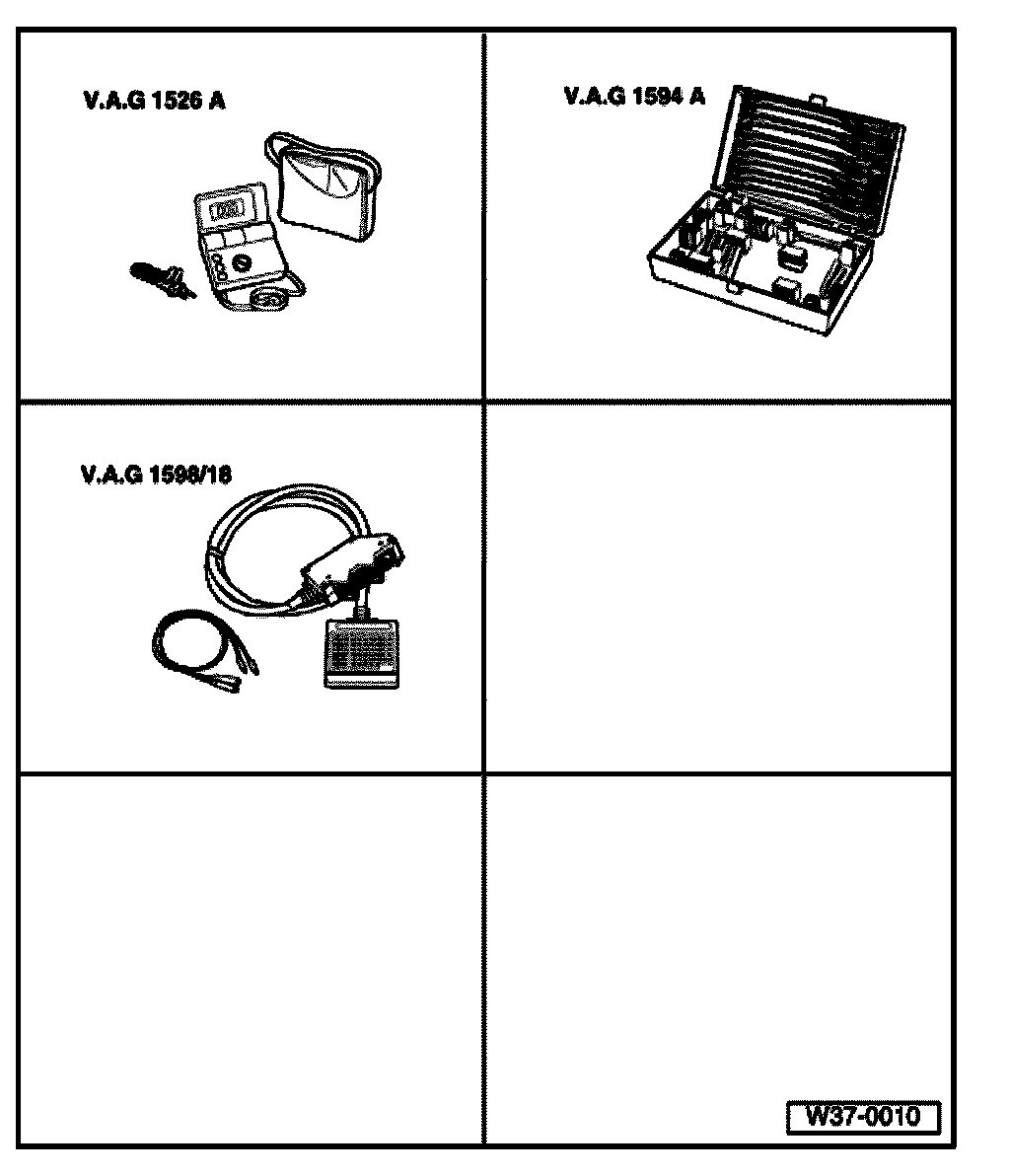

Special tools, testers, etc.:

^ Fluke 0 83 Digital multimeter or equivalent
^ VAG 1594 A Adapter set
^ VAG 1598/18 Test box

Check requirements
^ Battery voltage OK
^ Vehicle voltage supply OK
^ Fuses No. 7, 11, 15 and 31 OK
^ Fuse in main fuse box (110 amps) OK
^ Ground connections for transmission OK

Ground connection points are located in the plenum area of the cowl and below the battery in the engine compartment.

- Check battery Ground strap and Ground strap between battery and transmission.
