Home >> Volkswagen >> 2006 >> Golf (1J1) L4-2.0L (AVH) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection

Shift Interlock: Testing and Inspection

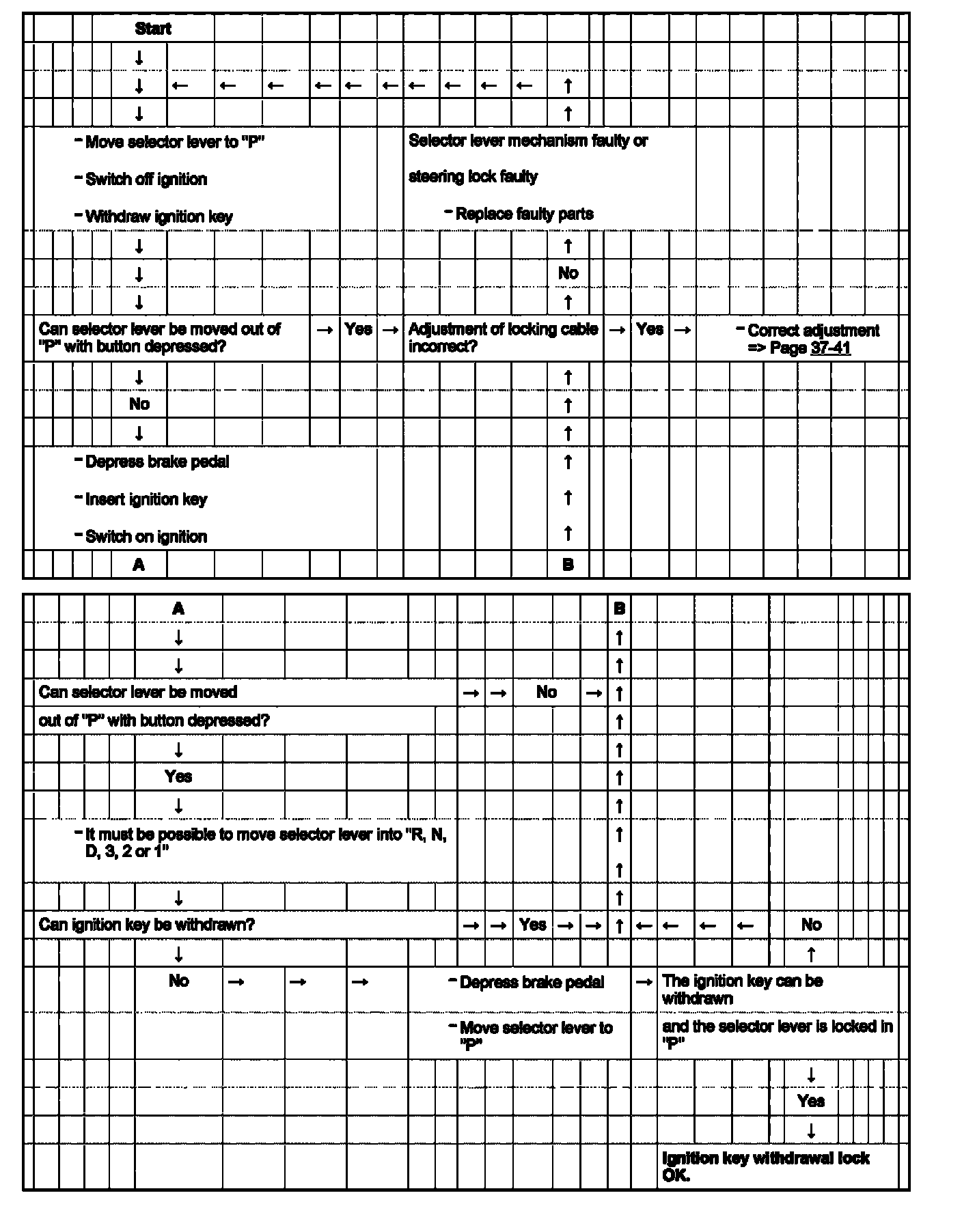

Checking operation of the ignition key withdrawal lock, 01M, 4 Spd. A/T
