Freewheel With -B1- Piston, Disassembling and Assembling

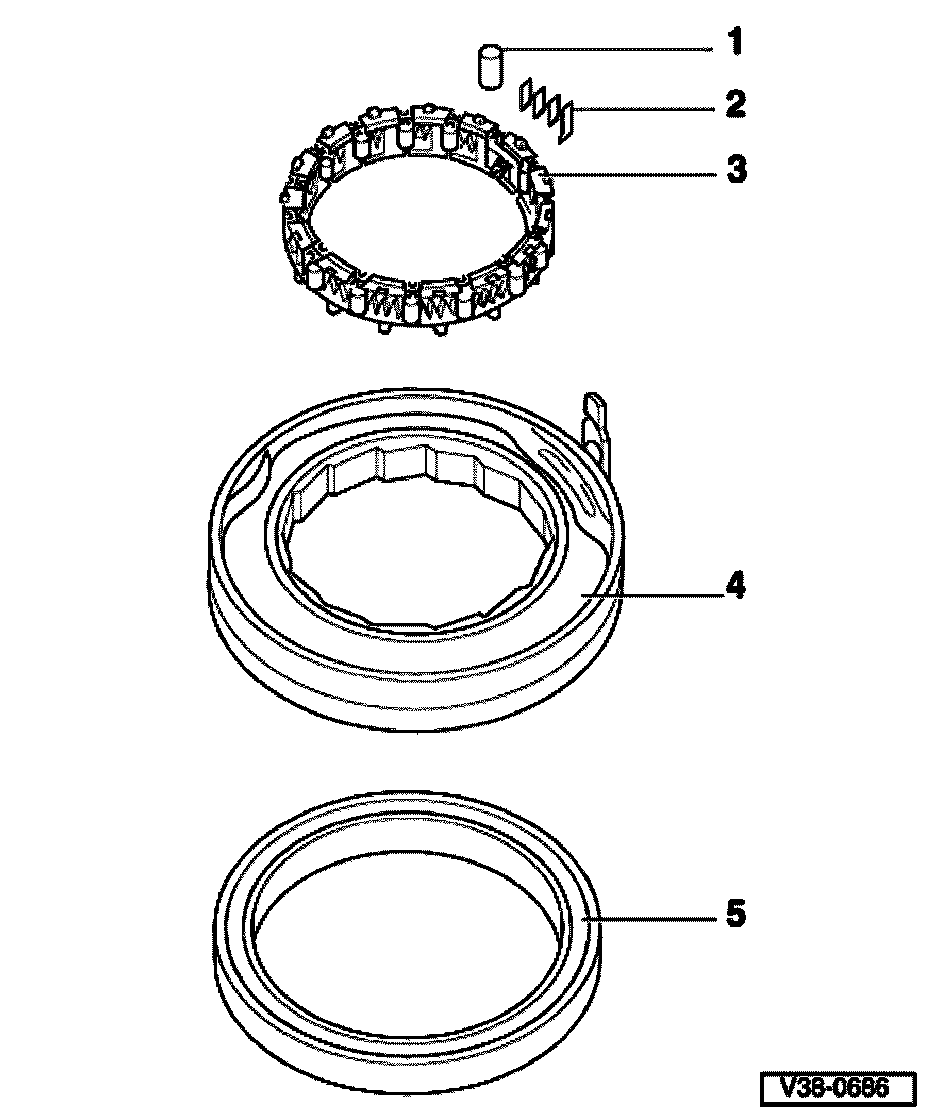

Freewheel with -B1- piston, disassembling and assembling, 01M, 4 Spd. A/T





1 - Rollers
^ Installing go to Fig. 1

2 - Springs
^ Installing go to Fig. 1

3 - Cage
^ Installing go to Fig. 2
^ Securing go to Fig. 3

4 - Outer ring
5 - Piston
^ Sealing lips are vulcanized to piston
^ Moisten sealing lips with ATF before installing
^ Turn piston slightly when installing
^ Installed position go to Fig. 4

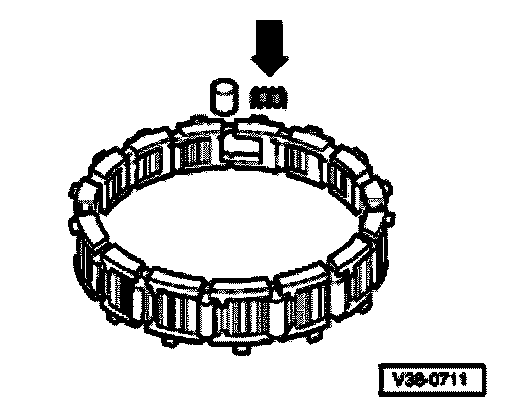

Fig. 1 Installing rollers and springs
- Insert springs so that spring (arrow) engages in cage.





Fig. 2 Inserting cage with springs and rollers
- Install with large tabs (arrow) facing up.

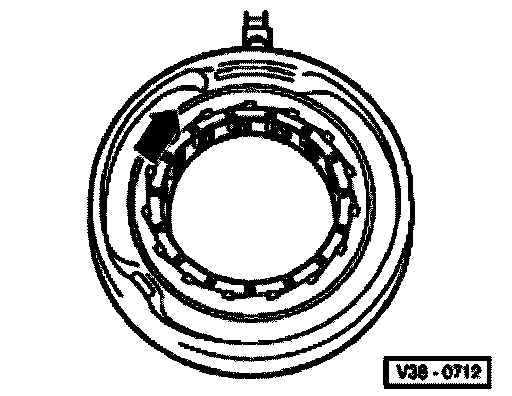

Fig. 3 Securing cage
- Secure cage by turning in direction of arrow up to stop.





Fig. 4 Installed position of piston
- Insert piston -A- as shown.
