Overview of Adjustments

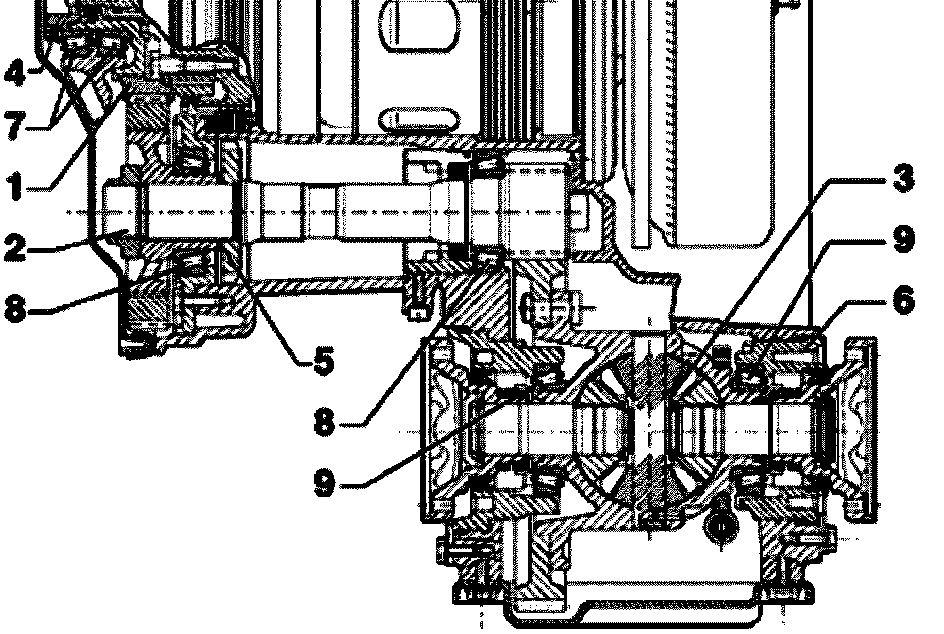

Overview of adjustments, 01M, 4 Spd. A/T

1 - Input gear
2 - Drive pinion
3 - Differential
4 - Shim for input gear
- Determine thickness on basis of table
- Determine part number from parts catalog





5 - Shim for drive pinion
- Determine thickness on basis of table
- Determine part number from parts catalog

6 - Shim for differential
7 - Tapered roller bearings for input gear
- Always replace together
- Re-determine shim when replacing tapered roller bearings

8 - Tapered roller bearings for drive pinion
- Always replace together
- Re-determine shim when replacing tapered roller bearings

9 - Tapered roller bearings for differential
- Always replace together
