Planetary Gearbox, Disassembling and Assembling -Overview-

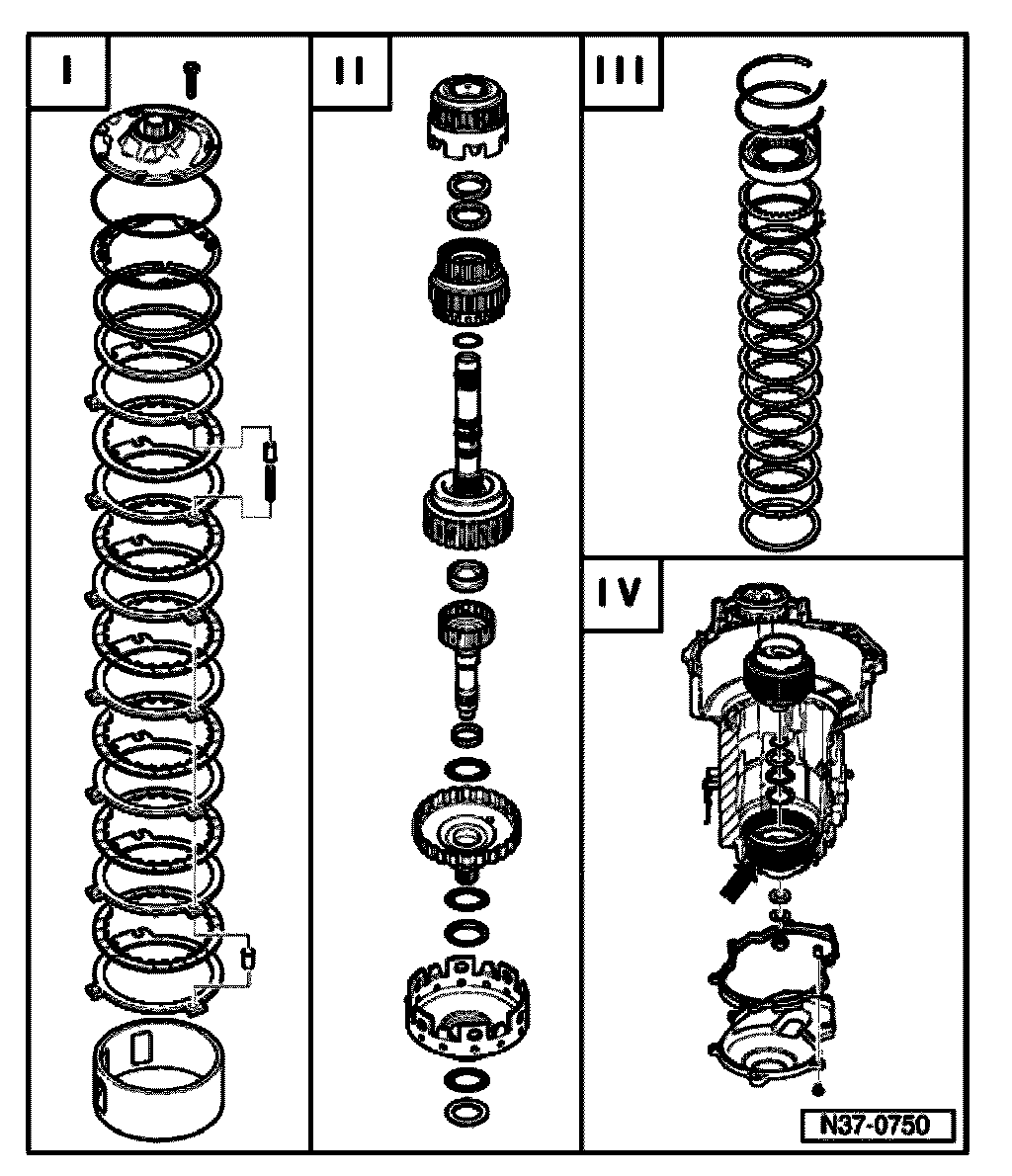

Planetary gearbox, disassembling and assembling -Overview-, 01M, 4 Spd. A/T





I - Removing and installing ATF pump to support tube

II - Removing and installing reverse clutch -K2- to large sun gear

III - Removing and installing freewheel and reverse gear brake -B1-

IV - Removing and installing planet carrier

Note:
^ It is not necessary to remove the input gear (arrow).
^ Removing and installing input gear.
