Overview of All Planetary Gearbox Adjustments

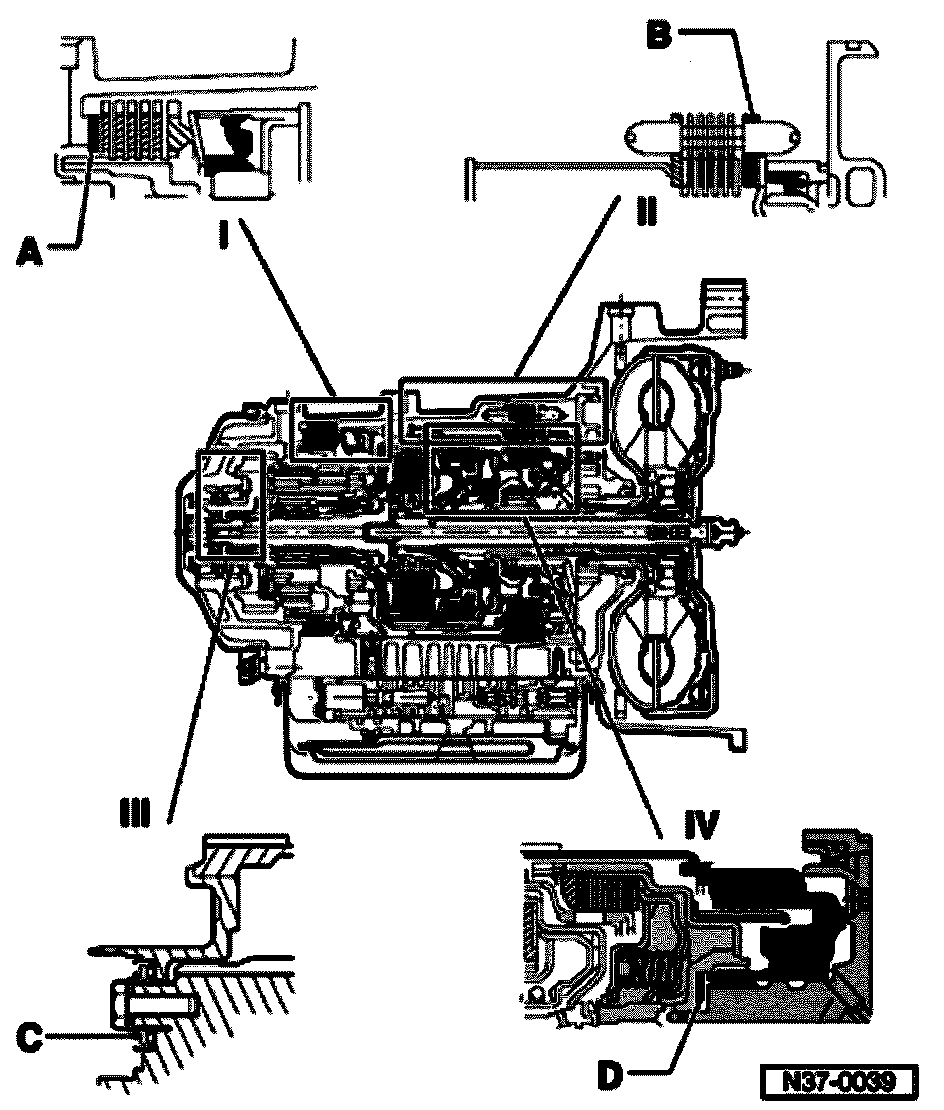

Overview of all planetary gearbox adjustments, 01M, 4 Spd. A/T





I = Reverse gear brake -B1-
^ A-Shim
^ Determining thickness go to adjusting reverse gear brake -B1-

II = 2nd and 4th gear brake -B2-
^ B - Outer plate or shim
^ Determining thickness go to adjusting 2nd and 4th gear brake -B2-

III = Planet carrier
^ C - Shim
^ Determining thickness go to adjusting planet carrier

IV = Clutch play
^ D - Shim
^ Determining thickness go to adjusting clutch play between -K1- and -K2-
