IV - Planet Carrier and Transmission Housing With Input Gear and Cover

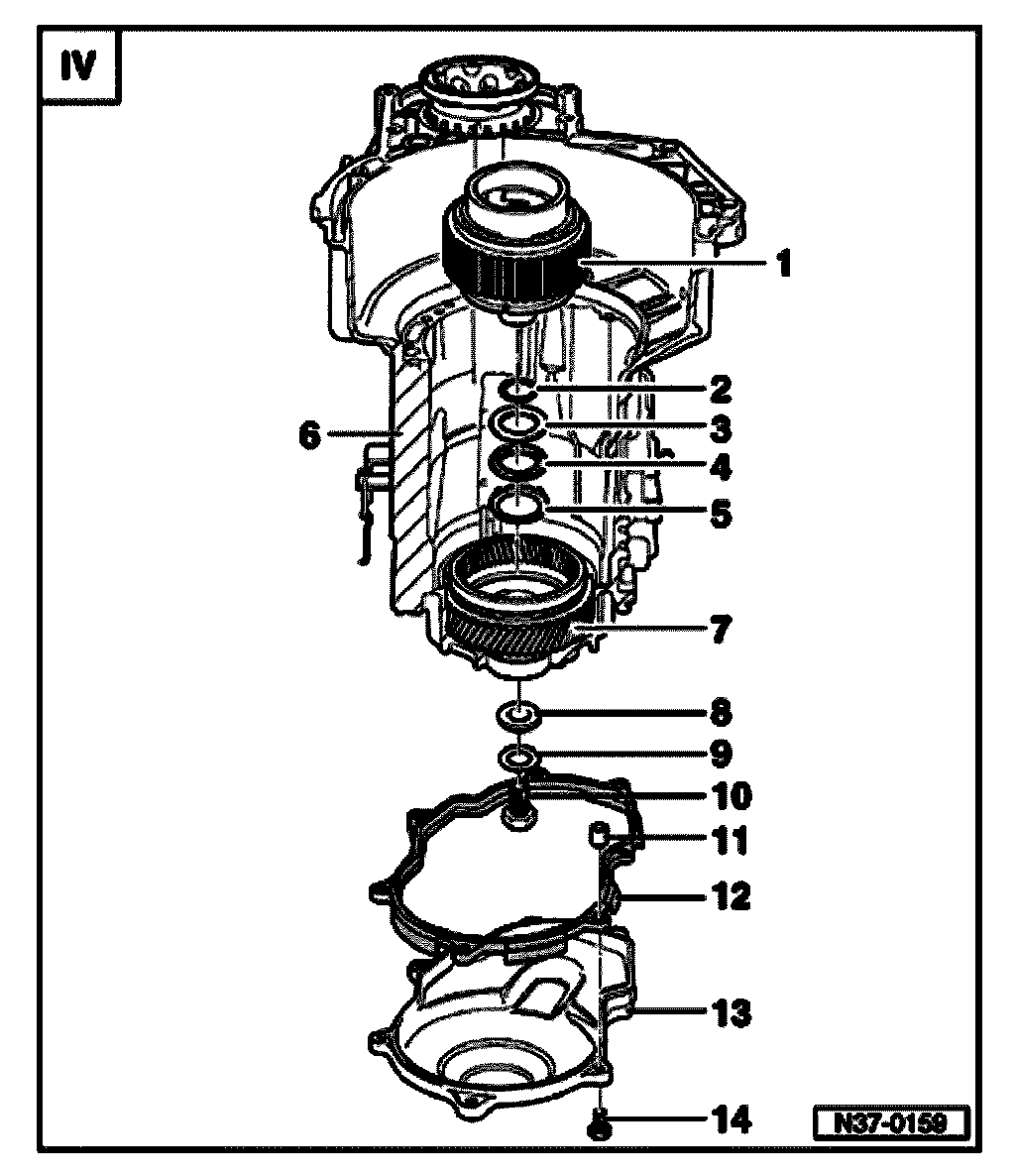

IV - Planet carrier and transmission housing with input gear and cover, 01M, 4 Spd. A/T





1 - Planet carrier
2 - O-ring
^ Always replace
^ Insert in planet carrier

3 - Axial needle bearing washer
4 - Axial needle bearing
5 - Axial needle bearing washer
^ Install smooth side in input gear

6 - Transmission housing with input gear installed
7 - Input gear
^ Do not remove to disassemble planetary gearbox
^ Removing and installing input gear or axial needle bearing for planet carrier

8 - Planet carrier shim
^ Determining thickness, go to Adjusting planet carrier

9 - Washer
10 - Bolt
^ 30 Nm
^ For small input shaft

11 - Spacer bushing
^ Clip qty. 7 into gasket

12 - Gasket
^ Always replace

13 - Cover
14 - Bolt, 8 Nm
^ 8 Nm
