III - Freewheel and Reverse Gear Brake -B1-, Removing and Installing

III - Freewheel and reverse gear brake -B1-, removing and installing, 01M, 4 Spd. A/T

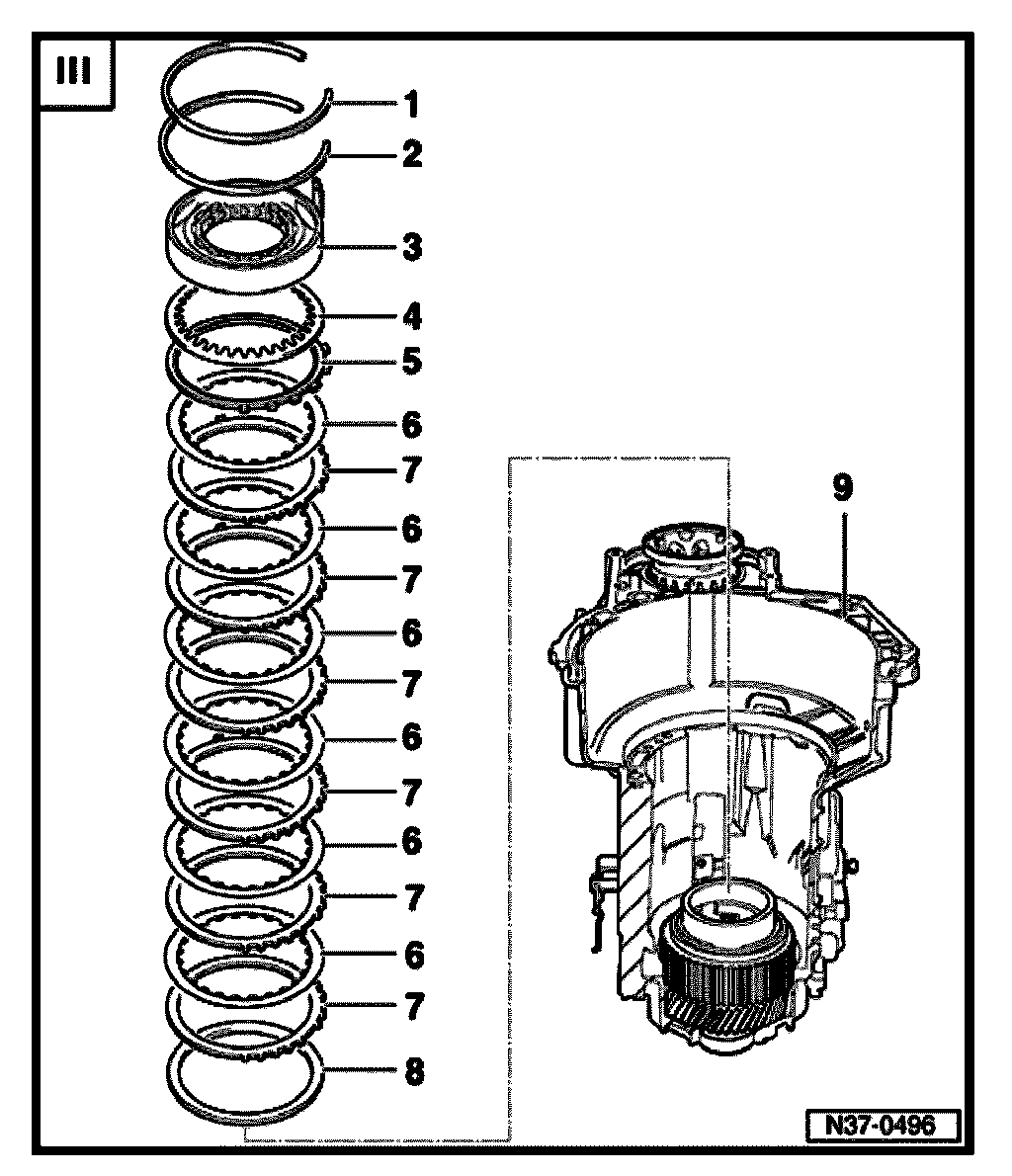

1 - Circlip
^ For supporting tube -B2-
^ Installed position: Circlip open ends face freewheel retaining wedge

2 - Circlip
^ For freewheel
^ Installed position: Circlip open ends face free wheel retaining wedge

3 - Freewheel with -B1- piston
^ Before removing freewheel, remove valve body and sealing plugs

4 - Dished spring
^ Install with convex facing freewheel

5 - Pressure plate -B1-
^ Install with flat side facing plates
^ Spare part is determined according to transmission code letters

6 - Inner plate, -B1-
^ Quantity of inner plates -B1-
^ Before installing place plates in ATF for 15 minutes

7 - Outer plate, -B1-
^ Quantity of outer plates -B1-

8 - Shim
^ Determining thickness, adjusting reverse gear brake -B1-

9 - Transmission housing with planet carrier installed
