I - ATF Pump to Supporting Tube, Removing and Installing

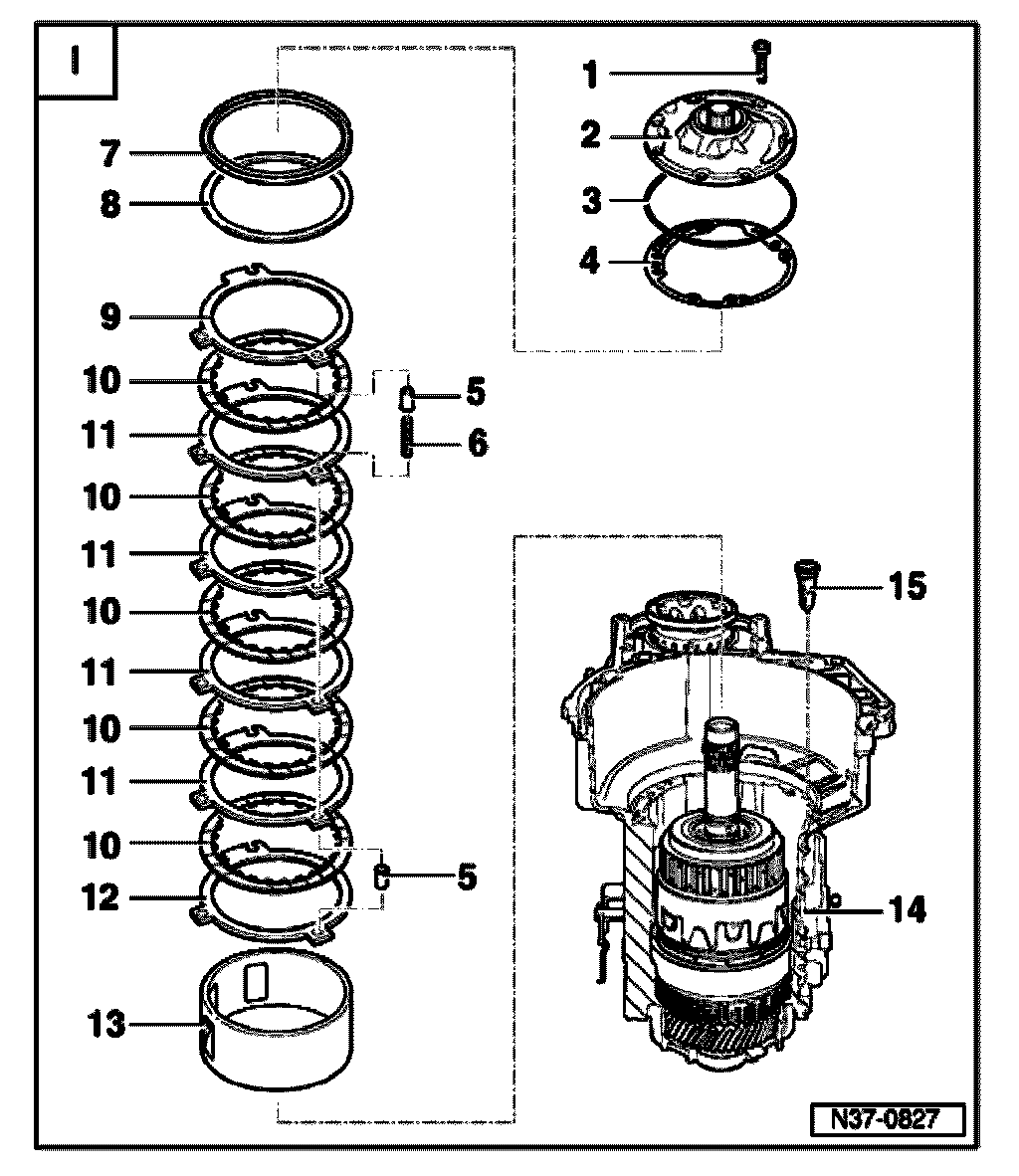

I - ATF pump to supporting tube, removing and installing, 01M, 4 Spd. A/T





1 - Bolt
^ Qty. 7
^ Tighten to 8 Nm and turn 90° further
^ Turning further of 90° may be done in several stages

2 - ATF pump with -B2- piston
^ Spare part is determined according to transmission code letters

3 - O-ring
^ Always replace
^ Place on ATF pump

4 - Gasket
^ Always replace

5 - Spring cap, Qty. 6
^ Install 3 spring caps after installing first outer plate
^ Install 3 spring caps before installing last outer plate

6 - Spring
^ Qty. 3

7 - Retaining ring
8 - Shim
9 - Outer plate -B2-
^ 3 mm thick

10 - Inner plate -B2-
^ Before installing place new inner plates in ATF for 15 minutes

11 - Outer plate -B2-
^ Always install 2 mm thick outer plates

12 - Outer plate -B2-
^ Fit 3 mm thick outer plate to supporting tube

13 - Supporting tube -B2-
^ For -B2- plate package
^ Spare part is determined according to transmission code letters
^ Insert so that groove engages in wedge of freewheel

14 - Transmission housing with clutches installed
15 - Strainer
^ Not installed until transmission manufacture date 14 02 0.
