ATF Cooler and ATF Filler Tube, Removing and Installing

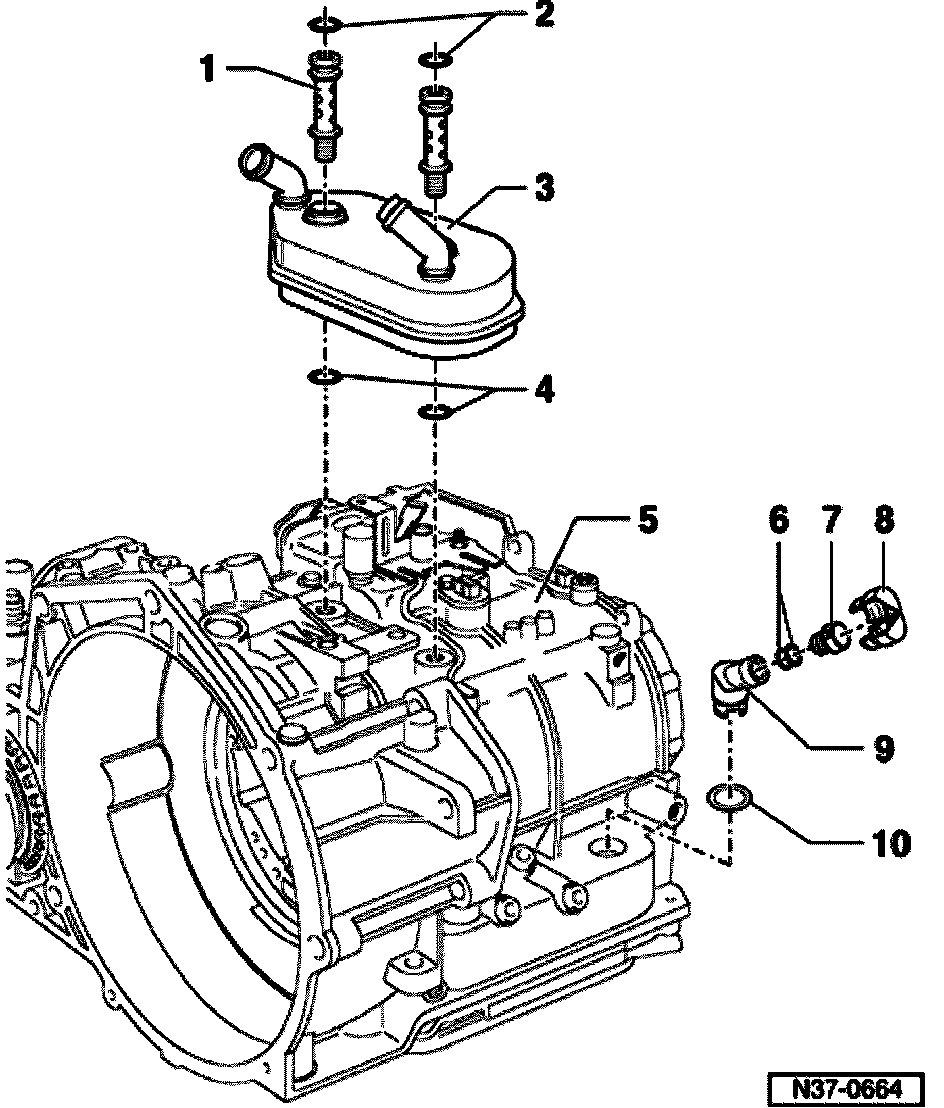

ATF cooler and ATF filler tube, removing and installing, 01M, 4 Spd. A/T





1 - Banjo bolt
^ 35 Nm

2 - O-ring
^ Always replace

3 - ATF cooler
4 - O-ring
^ Always replace

5 - Transmission housing
6 - Seal
^ Always replace

7 - Plug
8 - Cap
^ Always replace

9 - ATF filler tube
10 - O-ring
^ Always replace
