Final Drive Oil, Checking

Final drive oil, checking, 01M, 4 Spd. A/T
The oil level is checked with the transmission installed





The difference between Min. and Max. is 0.1 liters. Excess oil can be drawn off using the extraction system VAG 1358 A.

Work sequence
- Remove speedometer drive shaft and clean using a cloth.

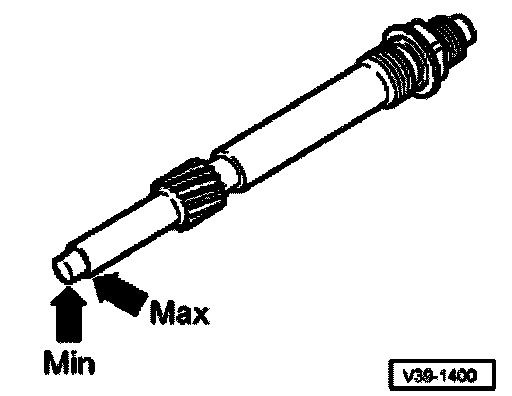

- Install and remove speedometer drive shaft, check oil level on shaft and, if necessary correct, oil level.

Final drive oil level must be between Min./Max.
