ATF, Replacing

ATF, replacing, 01M, 4 Spd. A/T
- Remove sound insulation tray.
- Remove sound insulation from left longitudinal member.
- Place container under transmission.

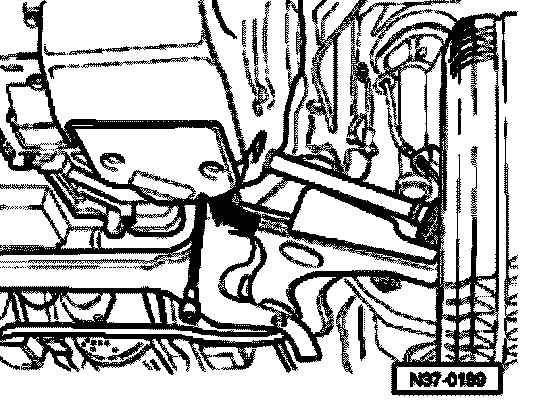

- Remove ATF level plug from oil pan.
- Remove overflow pipe through level hole.
- Drain ATF.
- Install overflow pipe.
- Screw level plug in hand-tight.
- Fill with 3 liters of ATF through filler pipe using V.A.G 1924.
- Start engine and shift through all selector lever positions with vehicle stationary.
- Check and top up ATF level.
