Home >> Volkswagen >> 2006 >> Golf (1J1) L4-2.0L (AVH) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Locations >> Connector Station A-Pillar, Lower Part Left

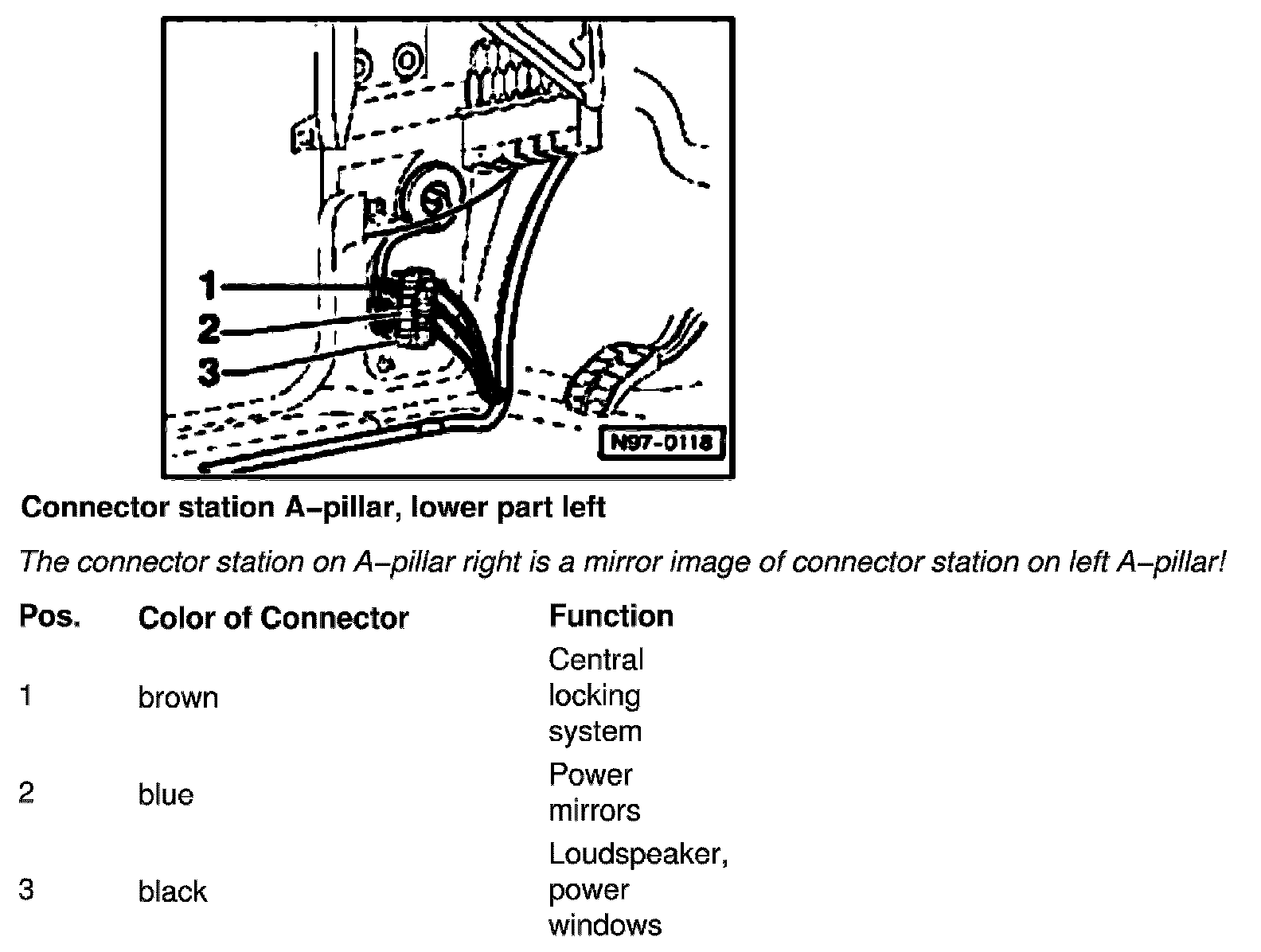

Connector Station A-Pillar, Lower Part Left

Connector Station A-Pillar, Lower Part Left:
