Relay Arrangements On The Thirteenfold Auxiliary Relay Panel, Above Relay Panel
Relay Arrangements On The Thirteenfold Auxiliary Relay Panel, Above Relay Panel

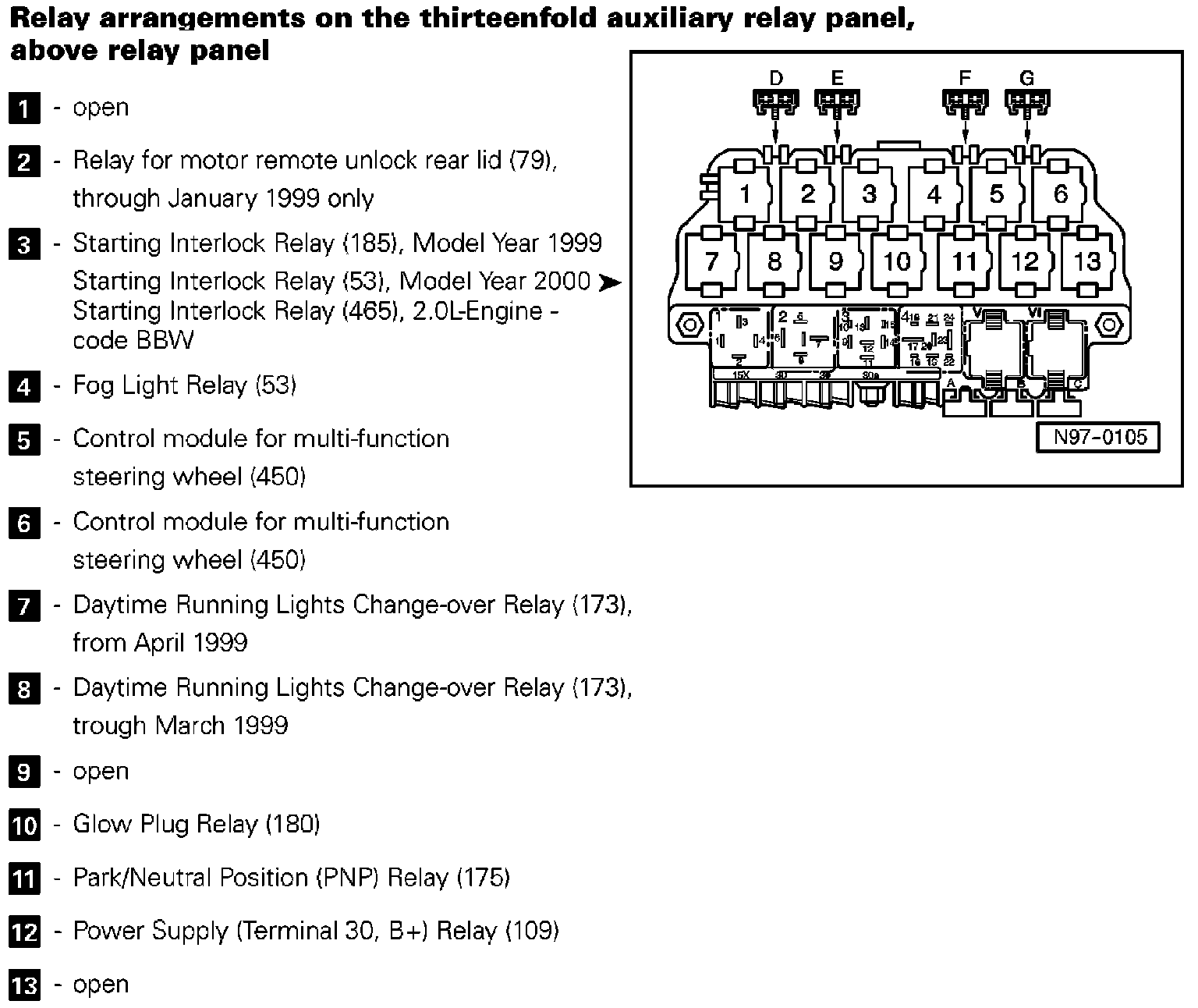

Relay Arrangements On The Thriteenfold Auxiliary Relay Panel, Above Relay Panel:
