Fuel Gauge Sender: Service and Repair

Fuel Gauge Sender, Removing And Installing (Engine Codes AVH, BEV)

Removing
- Remove fuel delivery unit.

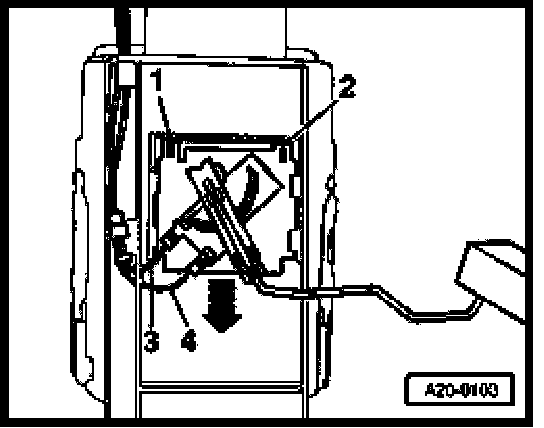

- Release line connector tabs -3- and -4- and pull off.
- Lift retaining tabs -1- and -2- with a screwdriver and pull fuel gauge sender out downward in direction of arrow.

Installing
- Insert fuel gauge sender in guides on fuel delivery unit and push up until it engages.
- Install fuel delivery unit.
