Radiator Cooling Fan Temperature Sensor / Switch: Locations

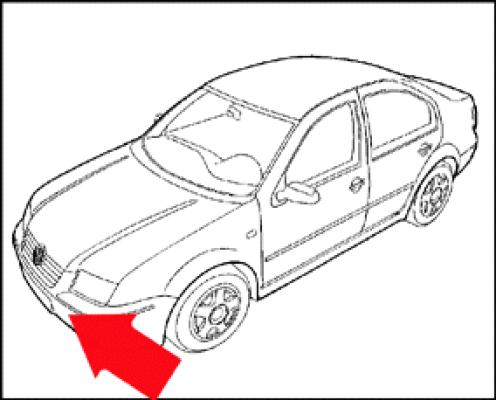

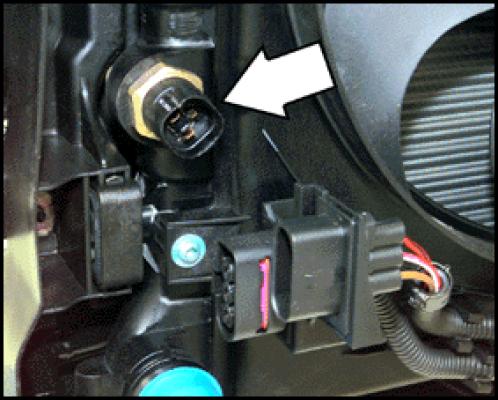

F18 - Coolant Fan Control (FC) Thermal Switch







- back side of radiator, bottom left
