FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2006
>>
Golf (1J1) L4-2.0L (AVH)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>

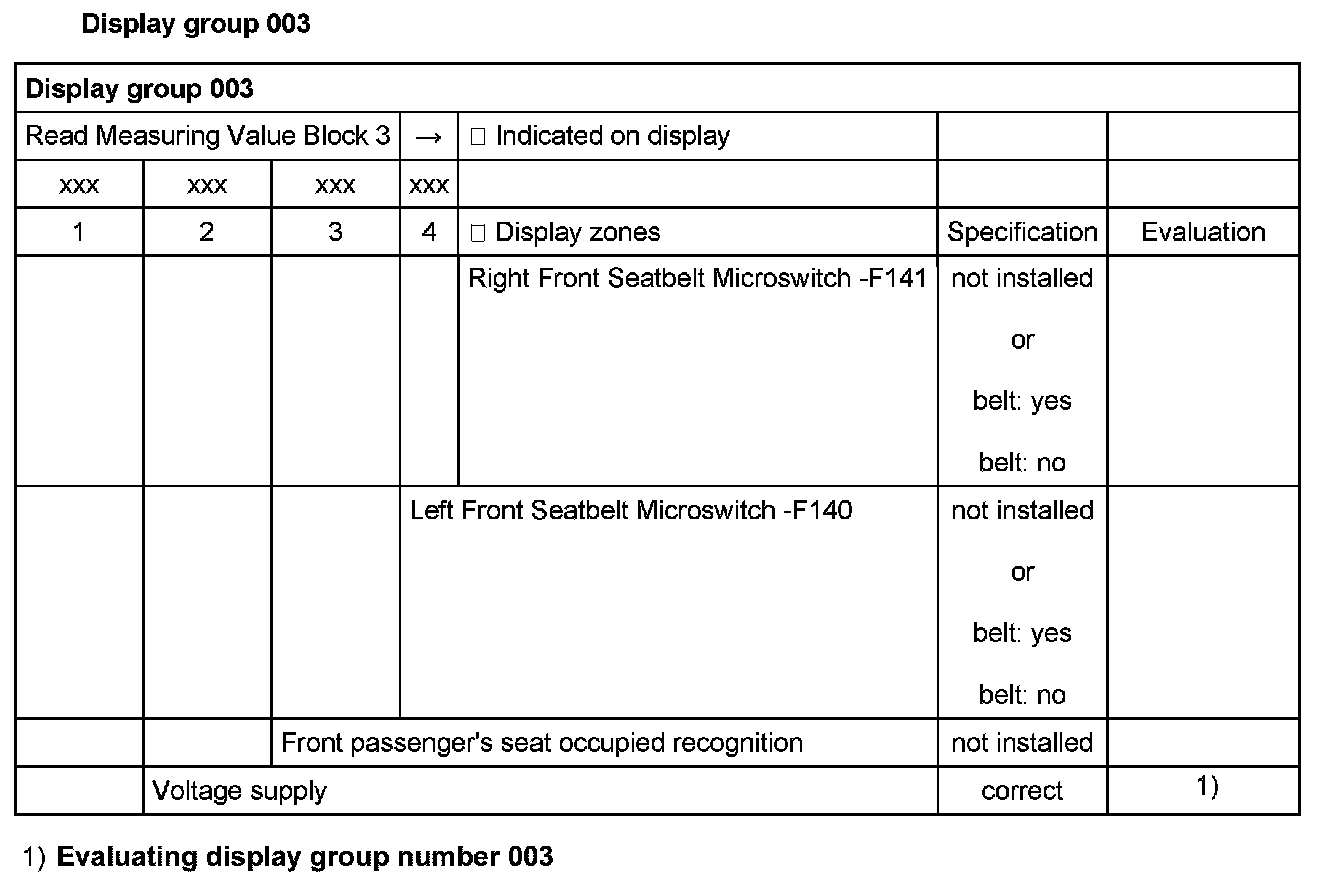

Display Group 003
Display Group 003
Display Group 003
Display Group 003:

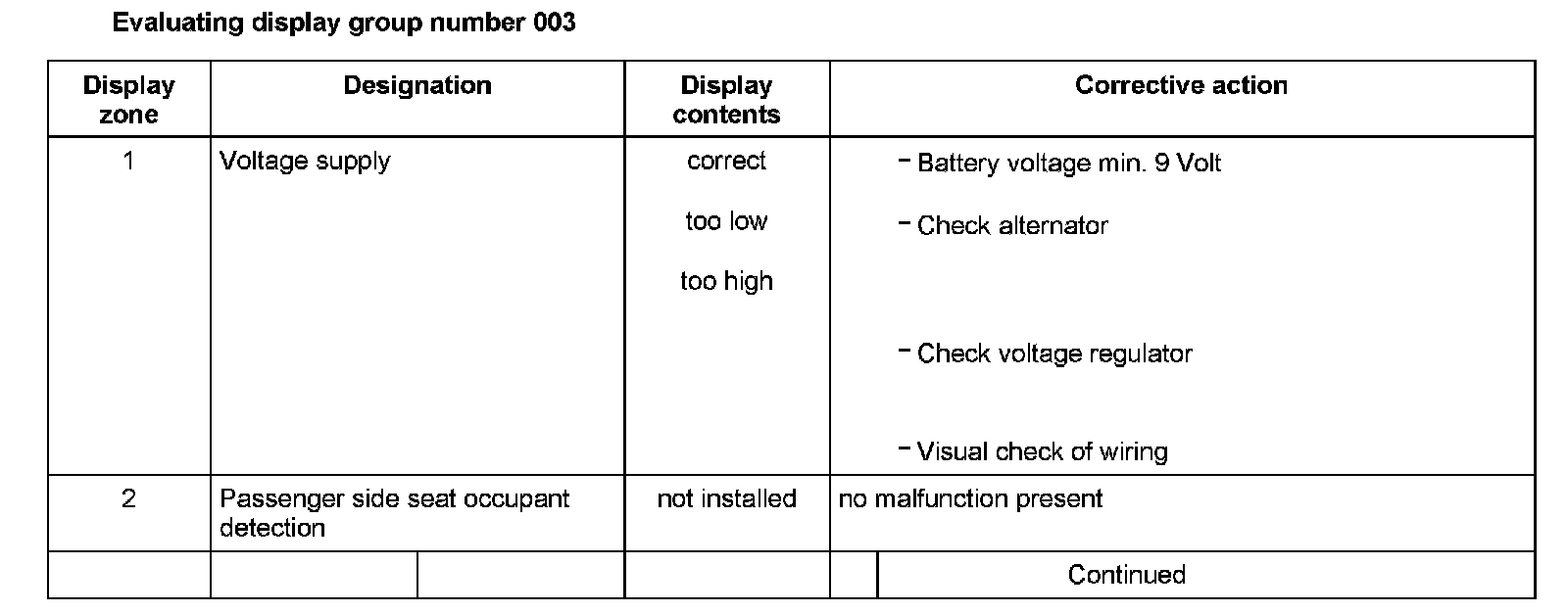

Evaluating display group 003
Display Zone 1 - 2:
Display Zone 3 - 4:
