Transmission Temperature Sensor/Switch: Locations

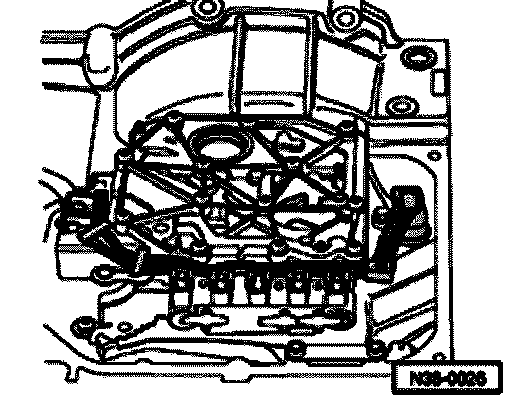

Fig. 4 Conductor strip with integrated Transmission Fluid Temperature Sensor -G93-, 01M, 4 Spd. A/T





Location: in oil pan on valve body
