Transmission Position Relay: Locations

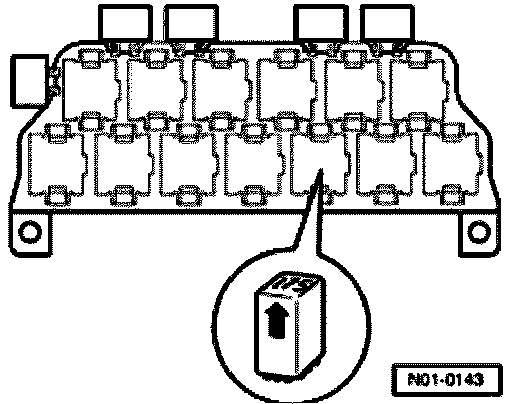

Fig. 13 Park/Neutral Position (PNP) Relay -J226-, 01M, 4 Spd. A/T





Location: on additional relay carrier under instrument panel, left side
Relay is marked with number 175 75 (arrow).
