Shift Indicator - A/T: Locations

01M, 4 Spd. A/T

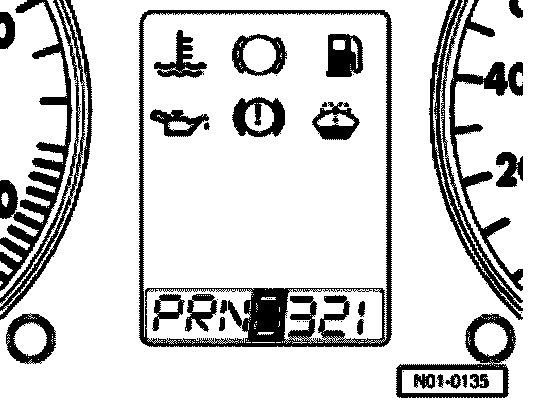

Fig. 7 Transmission Range (TR) Selector Lever Display -Y5-

Location: TR selector lever display (arrow) is located in the instrument cluster.
