Shift Interlock Solenoid
>>
Locations
>>
01M, 4 SPD. A/T
01M, 4 SPD. A/T

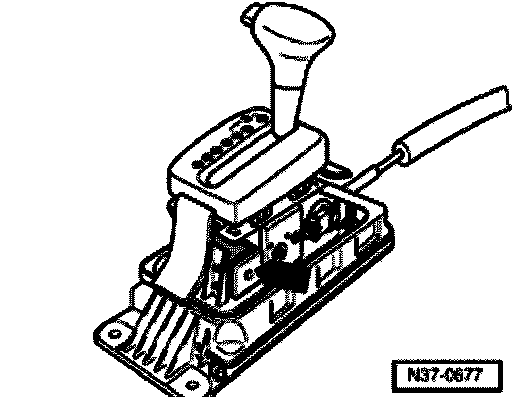

Fig. 11 Shift Lock Solenoid -N110-, 01M, 4 Spd. A/T
Location: in the selector lever housing (arrow)
