Fuel Supply System Components, Removing and Installing - I

Fuel Supply System Components, Removing And Installing

NOTE:
- Hose connections are secured with either spring-type or clamp-type clips.
- Always replace clamp-type clips with spring-type clips.
- Fuel hoses of engine must only be secured with spring-type clips. The use of clamp or screw-type clips is not permitted.

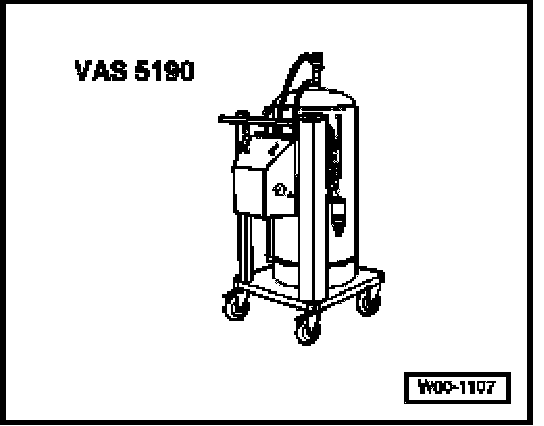

- Fuel pump unit VAS 5190 is recommended for emptying the fuel tank.

Engine Code BBW
Contrary to the operating instructions the draining must not occur via the filler neck in this engine/vehicle or inner components will be damaged. Empty the fuel tank only via the open flange, Removing and installing fuel delivery unit.

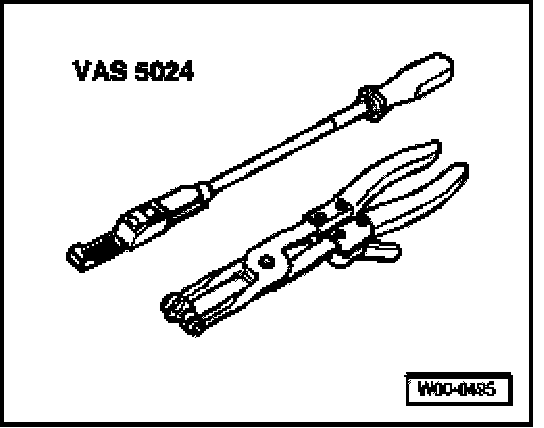

- Assembly tool VAS 5024 or hose clip pliers V.A.G 1921 are recommended for installing spring-type clips.

Removing and installing fuel tank with attachments and fuel filter.
Observe safety precautions
Observe rules for cleanliness

Engines: AEG, AVH, AZG
Servicing accelerator mechanism 20-80
Adjusting throttle cable

Continued For All Engines
Note crash fuel shut off
Evaporative Emissions system components.
