Exhaust Manifold, Front Exhaust Pipe and Catalytic Converter With Attachments

Exhaust Manifold, Front Exhaust Pipe And Catalytic Converter With Attachments (Engine Codes AVH)

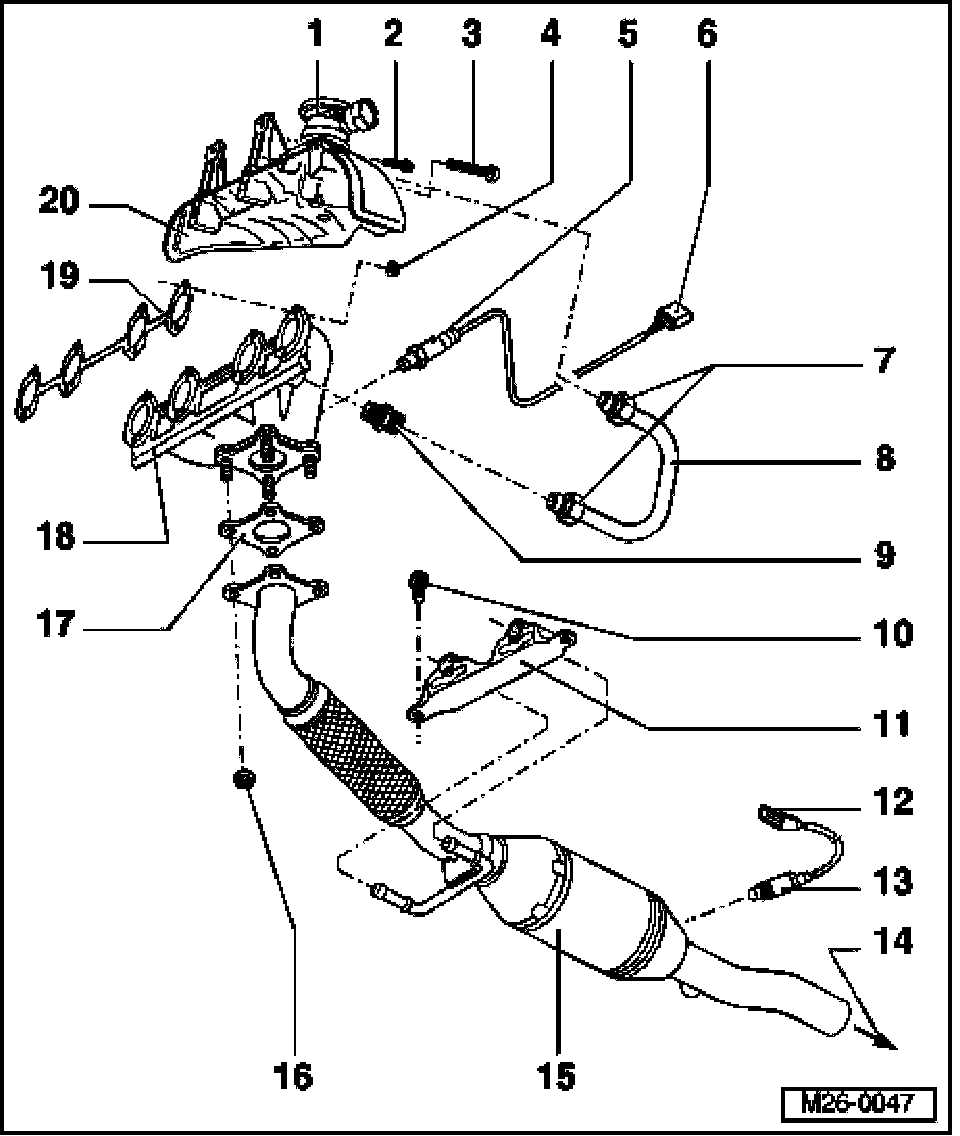

1. Combination valve
- To remove, remove warm air collector plate
2. 10 Nm
3. 25 Nm
4. 30 Nm
5. Heated Oxygen Sensor (HO2S) -G39-,50 Nm
- Grease only threads with G 052 112 A3 hot bolt paste (anti-seize compound). Paste must not get into slots on sensor body
- Removing and installing with 3337
6. Connector
- Black, 6-pin
- Contacts are gold plated
- For Oxygen Sensor and Heated Oxygen Sensor
7. 30 Nm
8. Connecting pipe
- For secondary air inlet system
9. 35 Nm
10. 25 Nm
11. Bracket
12. Connector
- Brown, 4-pin
- Contacts 3 and 4 are gold plated
- For Oxygen Sensor and Heated Oxygen Sensor
13 Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130-, 50 Nm
- Grease only threads with G 052 112 A3 hot bolt paste (anti-seize compound). Paste must not get into slots on sensor body
- Removing and installing with 3337
14. To middle muffler
15. Front exhaust pipe with catalytic converter
16. 40 Nm
- Always replace
17. Seal
- Always replace
18. Exhaust manifold
19. Seal
- Always replace
20. Warm air collector plate
