Oxygen Sensor Heater For Oxygen Sensor Before Three Way Catalytic Converter (TWC), Checking
Oxygen Sensor Heater For Oxygen Sensor Before Three Way Catalytic Converter (TWC), Checking
NOTE:
- Vehicle must be raised before connector for oxygen sensor is accessible.
- When servicing terminals in harness connector of oxygen sensor, use only gold-plated terminals.
Recommended special tools and equipment
- V.A.G 1526 multimeter or V.A.G 1715 multimeter
- V.A.G 1594 connector test kit
- Wiring diagram
Requirements

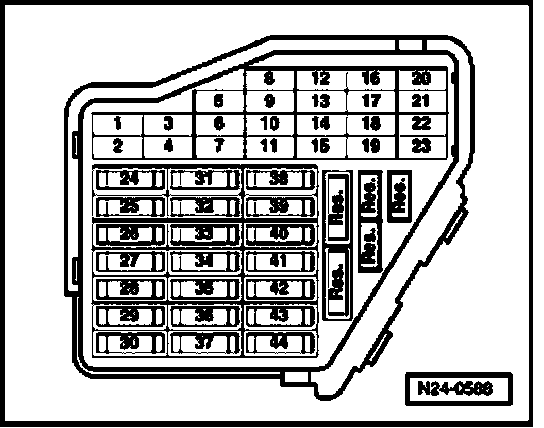

- The respective fuses of Heated Oxygen Sensor (HO2S) -G39- must be OK:
- Ignition switched off.
Work sequence (Vehicles with engine code AEG)

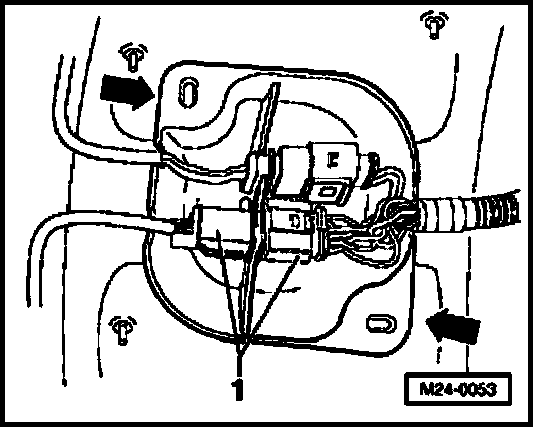

- Unscrew protective cover (arrows) and disconnect 4-pin harness connector (black) -1- to Heated Oxygen Sensor (HO2S) -G39- before catalytic converter.

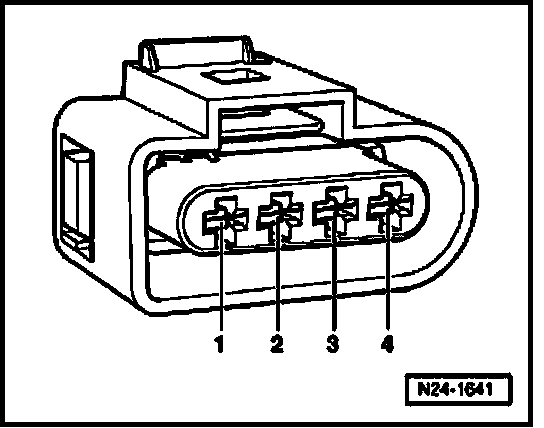

- Check resistance for sensor heater at connector to oxygen sensor terminal 1 + 2.
Specified value: 1.0 to 5.0 Ohms (at room temperature)
If specified value is not obtained:
- Replace Heated Oxygen Sensor (HO2S) -G39- bank 1 before catalytic converter.
- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes.
If specified value is obtained:
- Check Ground (GND) activation of oxygen sensor heater.
- Connect test box to control module wiring harness, connect test box for wiring test. Test Box, Connecting For Wiring Test
- Check wires between test box and 4-pin connector to Engine Control Module (ECM) for open circuit according to wiring diagram.
Terminal 2 + socket 27
Wire resistance: max. 1.5 Ohms
- Check wires for short circuit to B+ and to Ground (GND).
Specified value: Infinite Ohms
- Check wire between 4-pin connector terminal 1 and Fuel Pump (FP) relay -J17- for open circuit according to wiring diagram.
Wire resistance: max. 1.5 Ohms
If no malfunctions are found in wires:
- Replace Motronic Engine Control Module (ECM) -J220-.
Work sequence (Vehicles with engine code AVH, AZG, BEV)

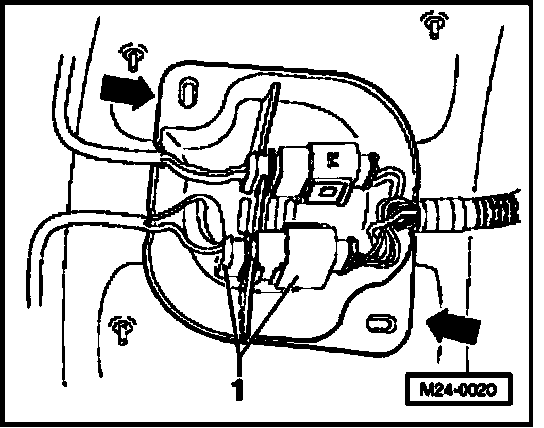

- Remove protective cover (arrows) and disconnect 6-pin harness connector (black) -1- to Heated Oxygen Sensor (HO2S) - G39- before catalytic converter.

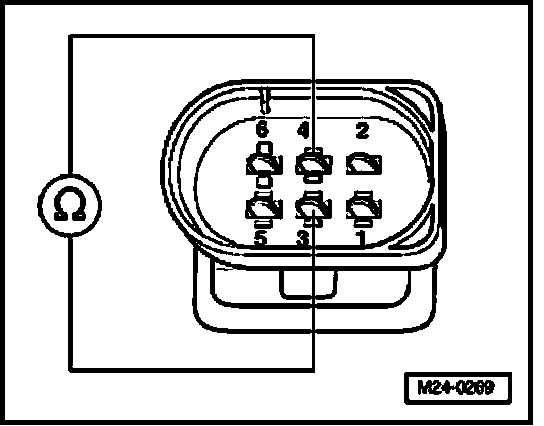

- Check resistance for sensor heater at connector to oxygen sensor terminal 3 + 4.
Specified value: 2.5 to 10.0 Ohms (at room temperature)
If specified value is not obtained:
- Replace Heated Oxygen Sensor (HO2S) -G39- bank 1 before catalytic converter.
- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes.
If specified value is obtained:
- Check Ground (GND) activation of oxygen sensor heater.
- Connect test box to control module wiring harness, connect test box for wiring test. Test Box, Connecting For Wiring Test

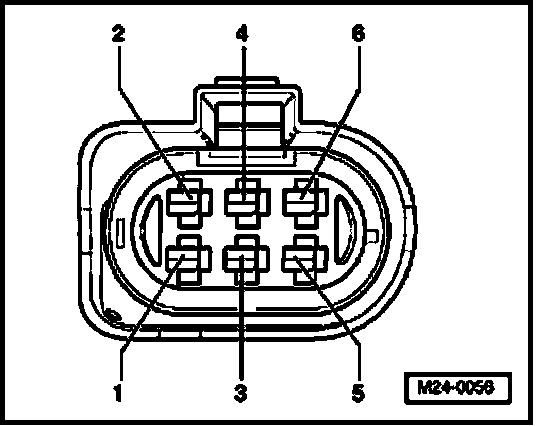

- Check wires between test box and 6-pin connector to Engine Control Module (ECM) for open circuit according to wiring diagram.
Terminal 4 + socket 5
Wire resistance: max. 1.5Ohms
- Check wires for short circuit to B+ and to Ground (GND).
Specified value: Infinite Ohms
- Check wire between 6-pin connector terminal 3 and the Fuel Pump (FP) relay -J17- for open circuit according to wiring diagram.
Wire resistance: max. 1.5 Ohms
If no malfunctions are found in wires:
- Replace Motronic Engine Control Module (ECM) -J220-.
Work sequence (vehicles with engine code BBW)

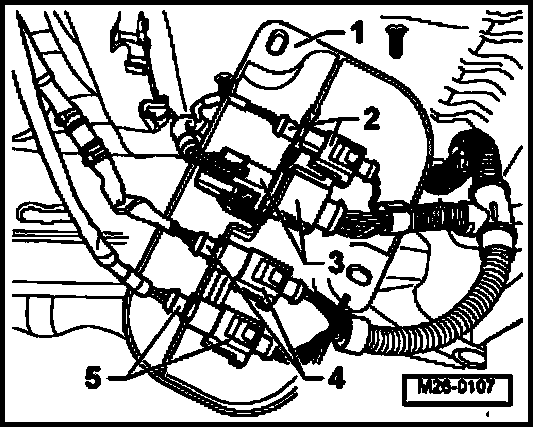

- Remove protective cover -1- and disconnect 6-pin harness connector (black) -3- to Heated Oxygen Sensor (HO2S) -G39- before catalytic converter.

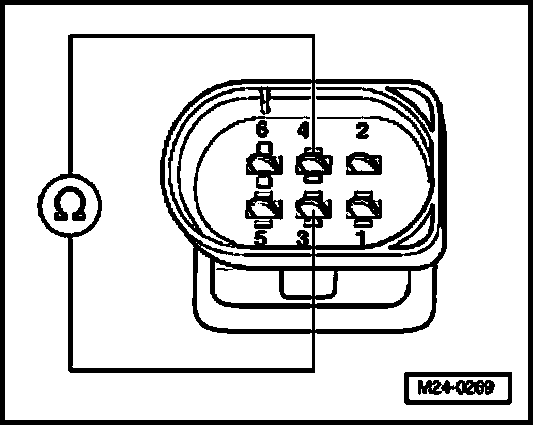

- Check resistance for sensor heater at connector to oxygen sensor terminal 3 + 4.
Specified value: 2.5 to 10.0 Ohms (at room temperature)
If specified value is not obtained:
- Replace Heated Oxygen Sensor (HO2S) 1 -G39- bank 1 before catalytic converter.
- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes.
If specified value is obtained:
- Check Ground (GND) activation of oxygen sensor heater.
- Connect test box to control module wiring harness, connect test box for wiring test. Test Box, Connecting For Wiring Test
- Check wires between test box and 6-pin connector to Engine Control Module (ECM) for open circuit according to wiring diagram.
Terminal 4 + socket 5
Wire resistance: max. 1.5 Ohms
- Check wires for short circuit to B+ and to Ground (GND).
Specified value: Infinite Ohms
- Check wire between 6-pin connector terminal 3 and the Fuel Pump (FP) relay -J17- for open circuit according to wiring diagram.
Wire resistance: max. 1.5 Ohms
If no malfunctions are found in wires:
- Replace Motronic Engine Control Module (ECM) -J220-.
