Engine Mount: Adjustments

Engine and transmission mountings, aligning

Special tools and equipment





^ Support assembly 10-222 A with legs 10-222 A/1

WARNING! Before loosening bolts secure assembly using support device 10-222A.





Engine mounting

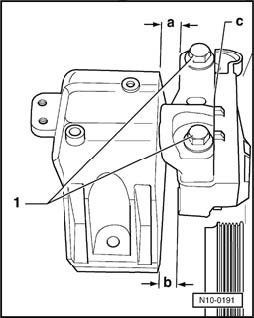

-a- = 14.0 mm
-b- = at least 10.0 mm
Both bolt heads -1- must be in flush with edge -c-





Transmission mounting
Edges -a- and -b- must be parallel with one another
-c- = 18 to 20 mm

Note:
Tightening torques for assembly mounting.
