Seat Adjustment, on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>

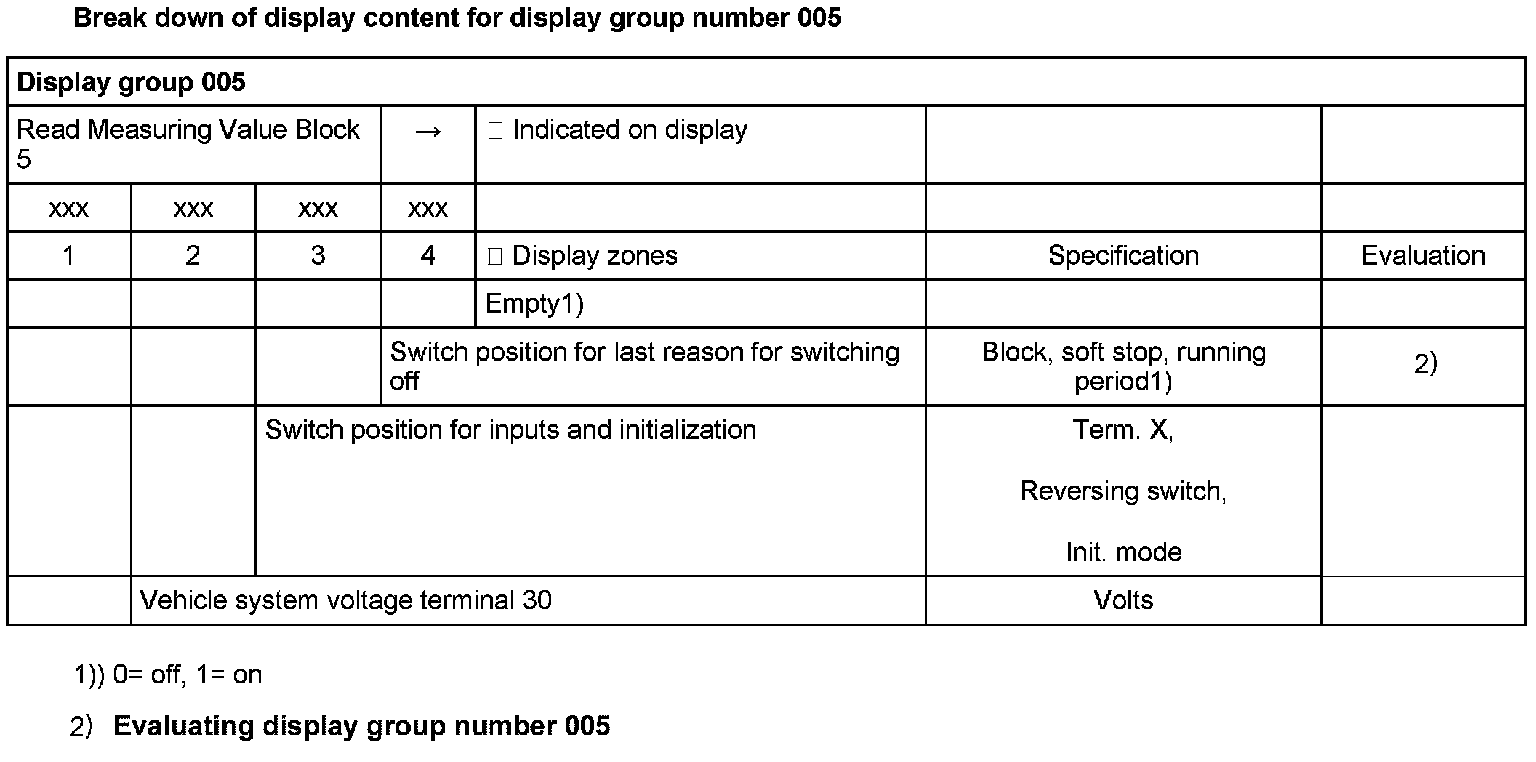

Display Group 005
Display Group 005
Display Group 005
Display Group 005:

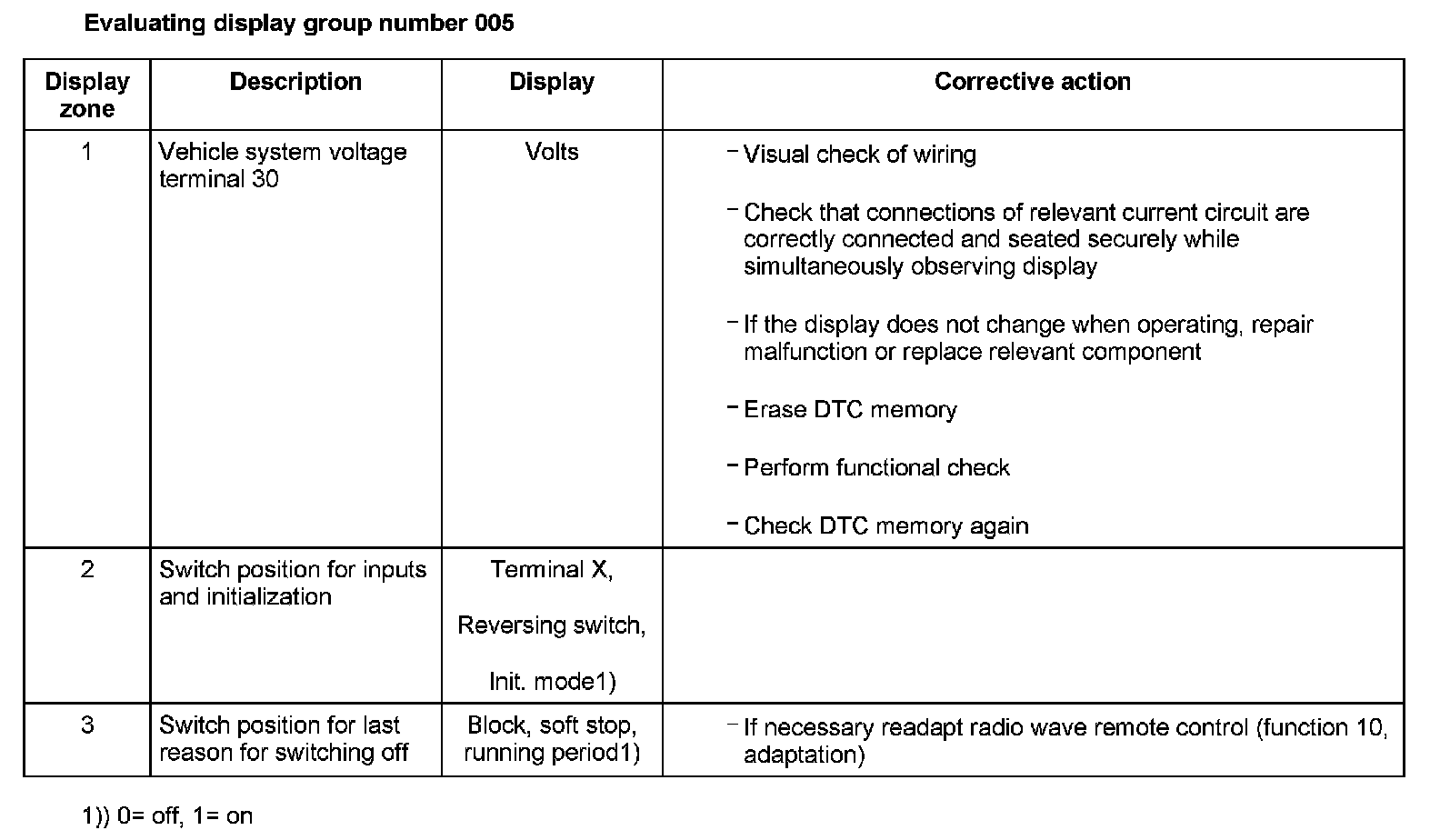

Evaluation For Display Group 005
Display Zone 1 - 3:
