Seat Adjustment, on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>
Display Group 002
Display Group 002
Display Group 002

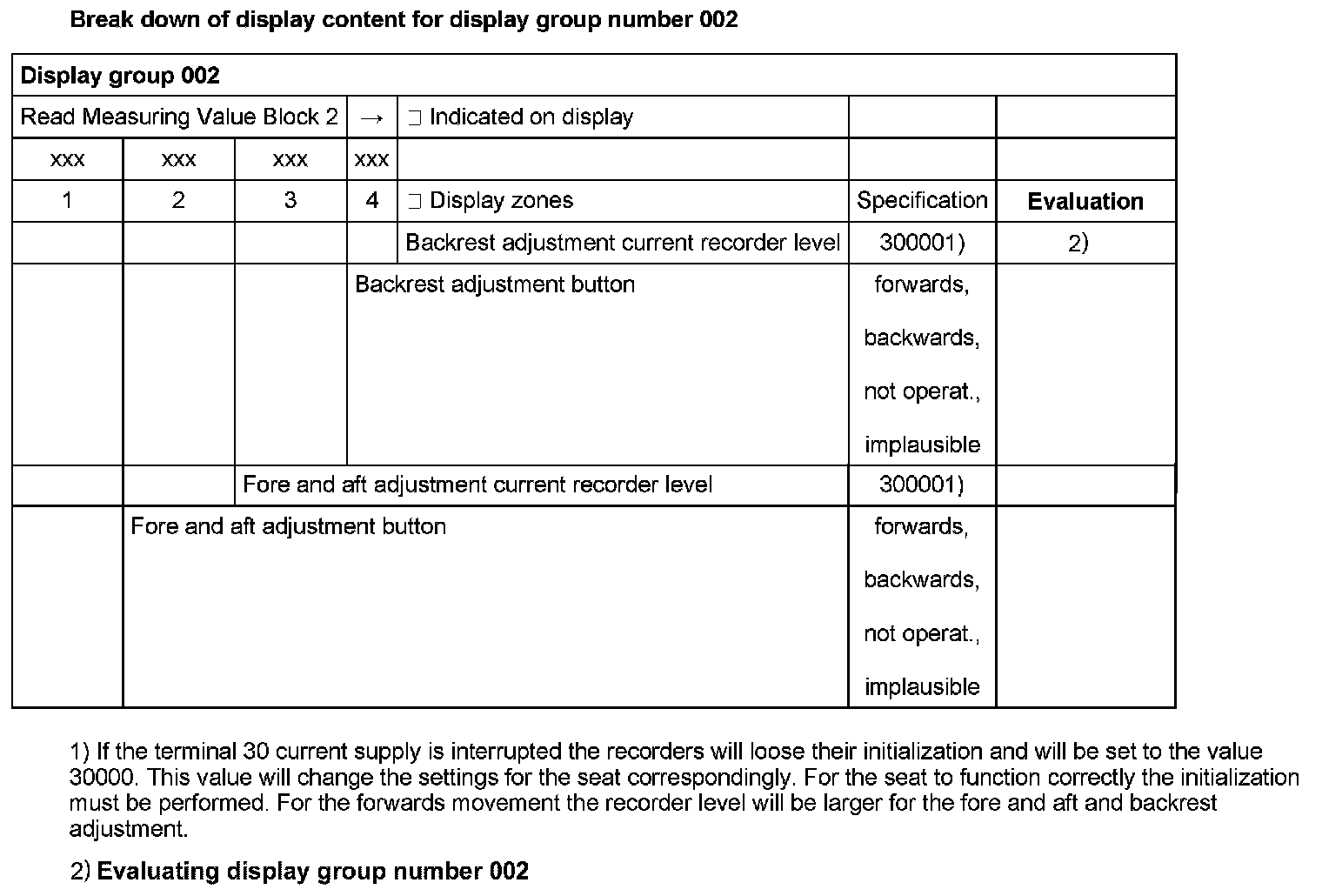

Display Group 002:

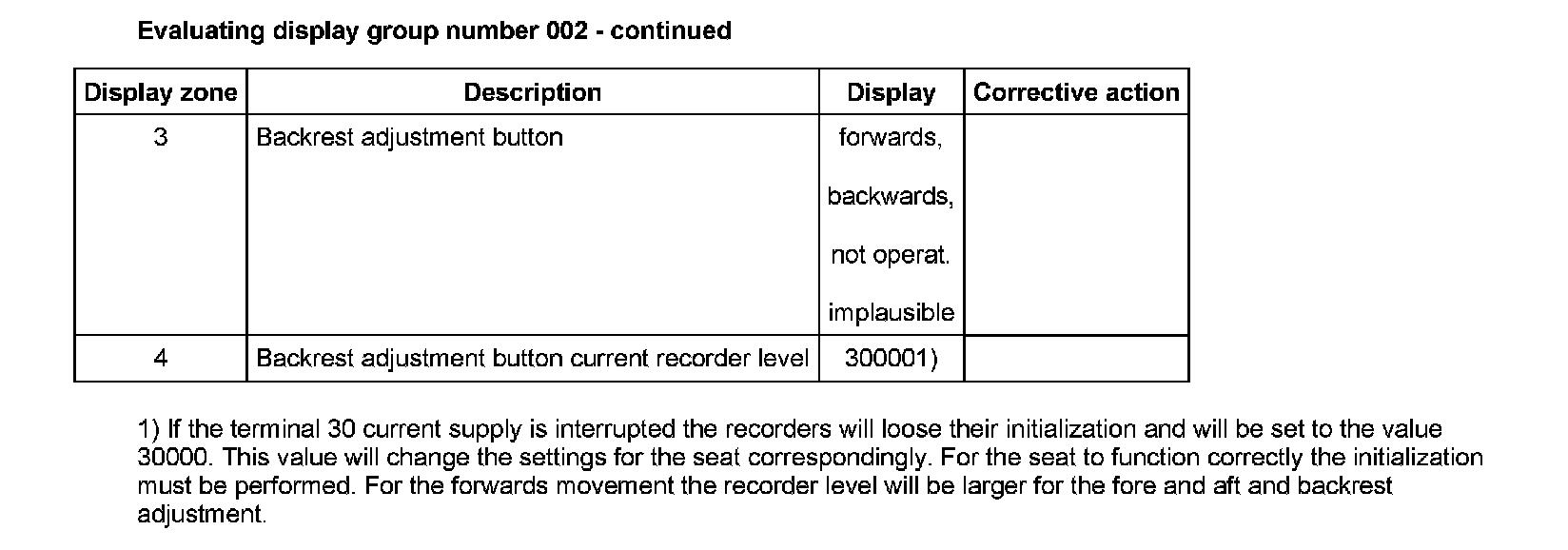

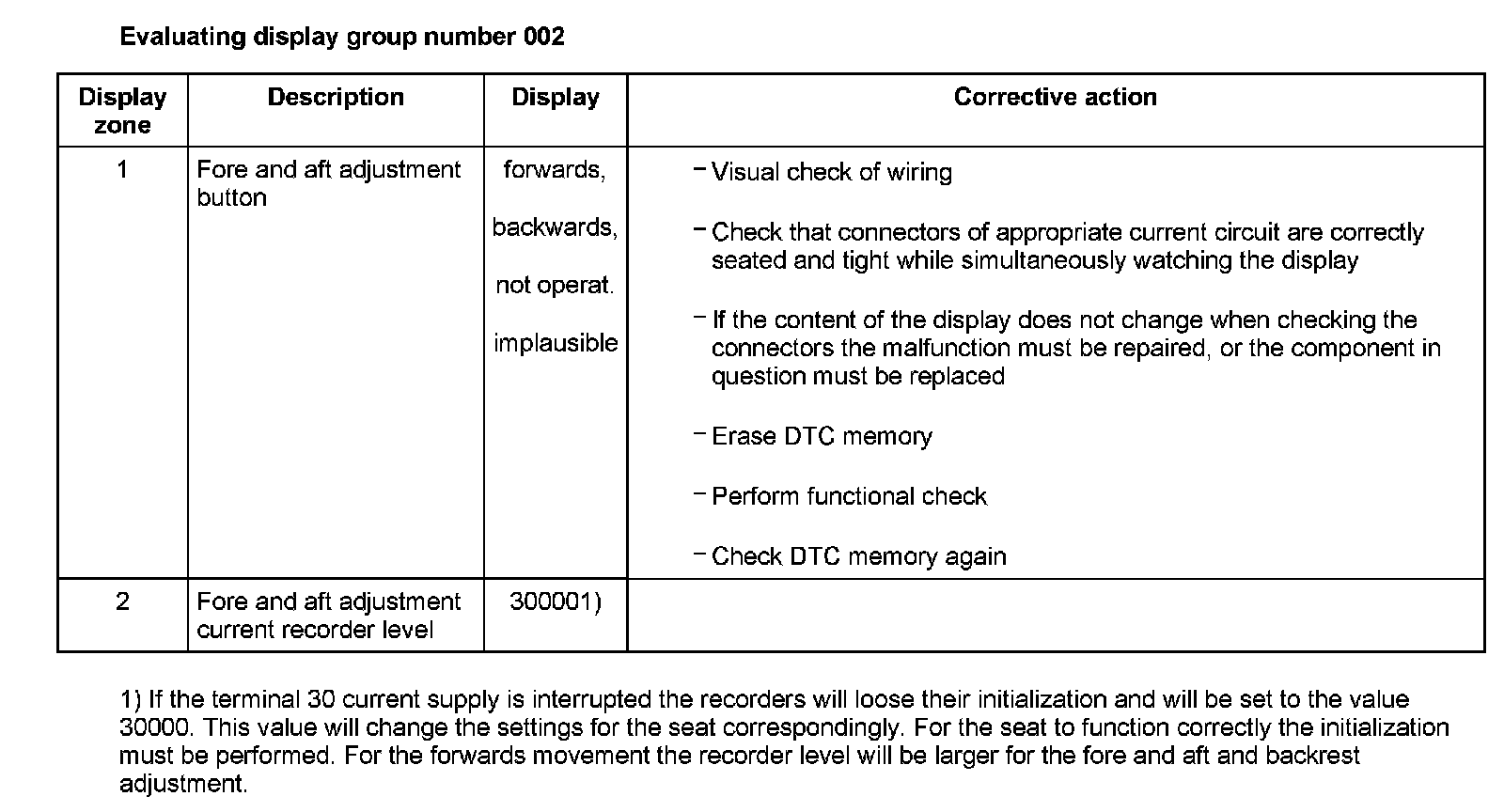

Evaluation For Display Group 002
Display Zone 1 - 2:
Display Zone 3 - 4:
