Convenience System, on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>
Display Group 013
Display Group 013
Display Group 013

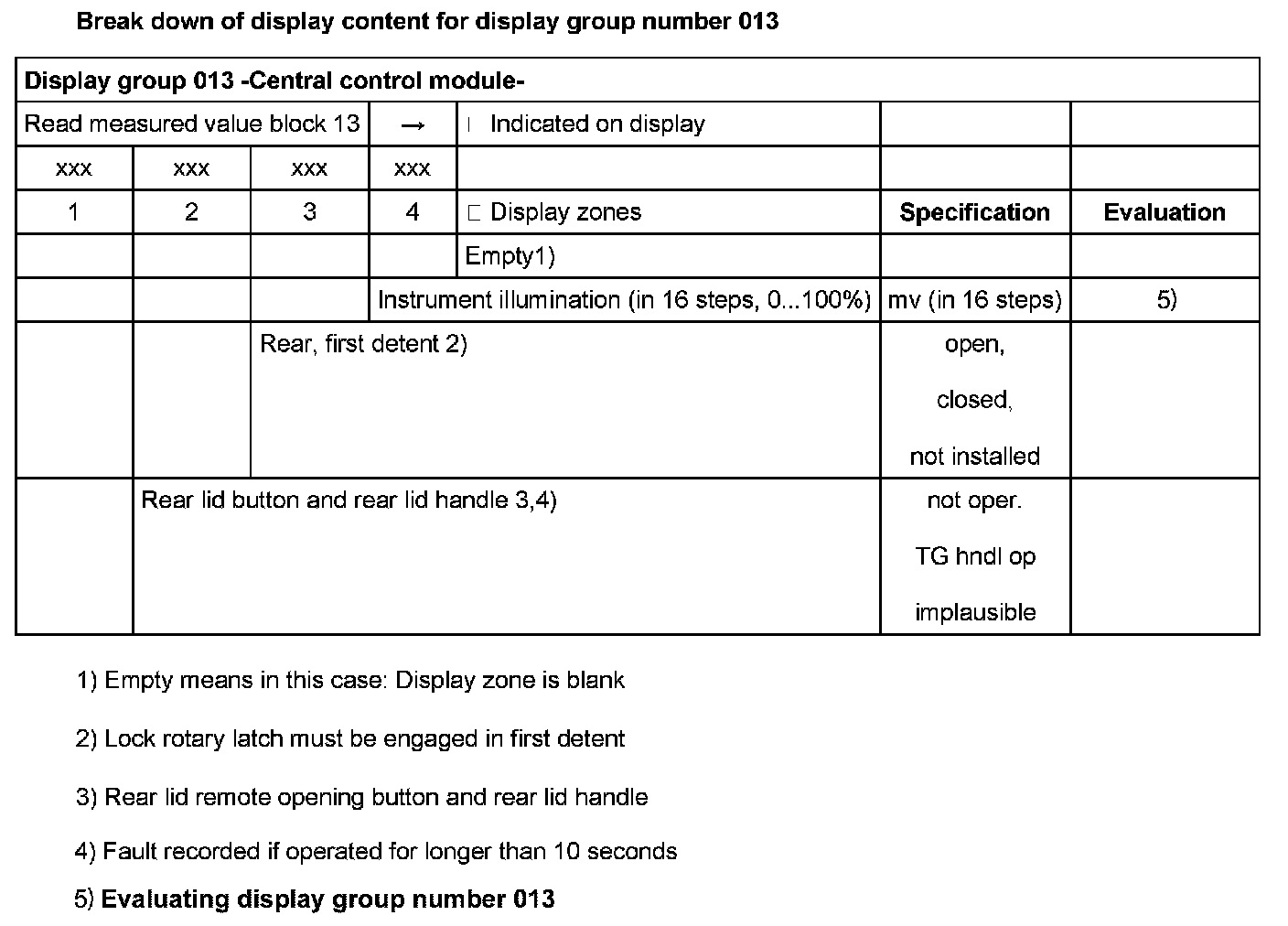

Display Group 013:

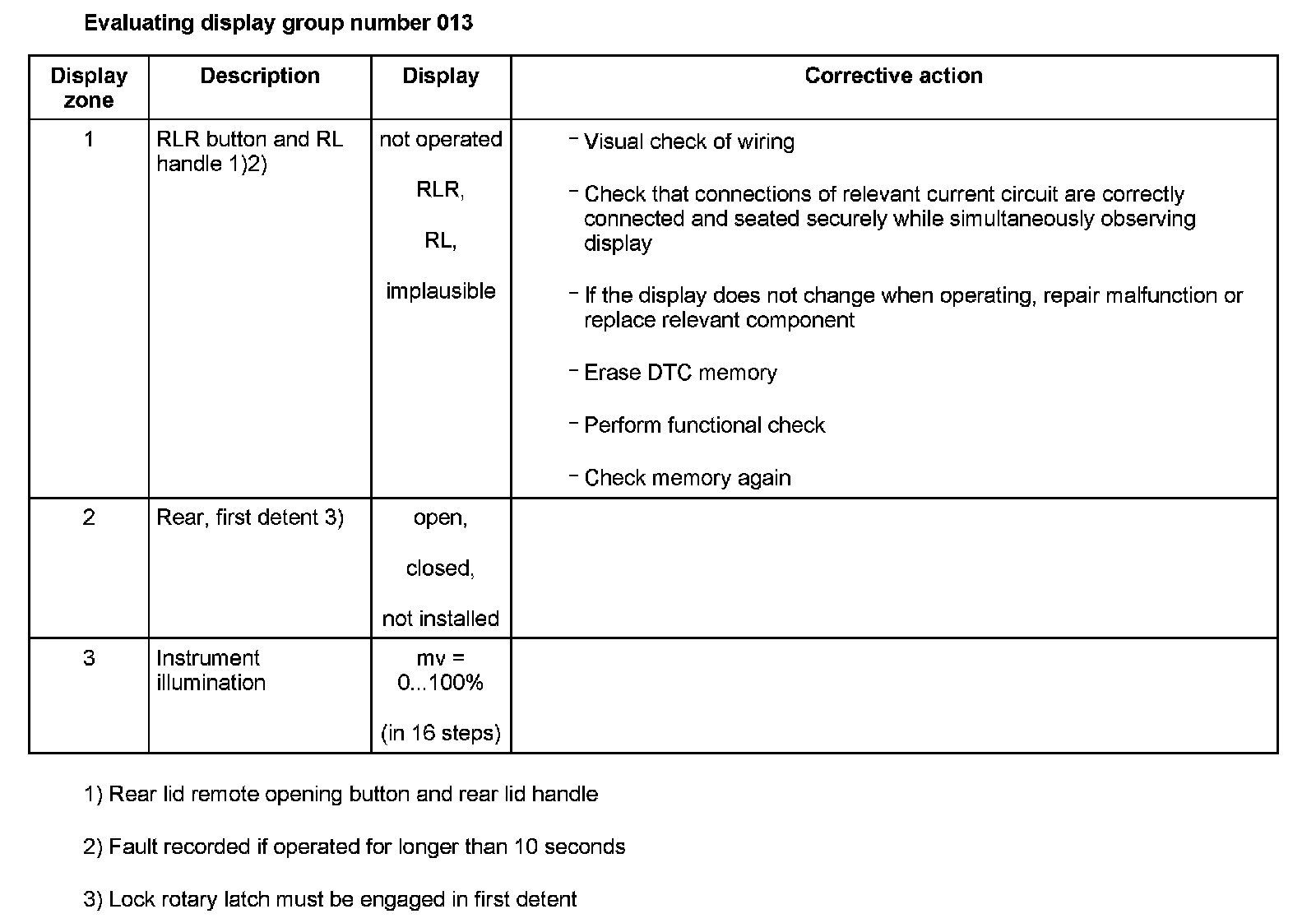

Evaluation For Display Group 013
Display Zone 1 - 3:
