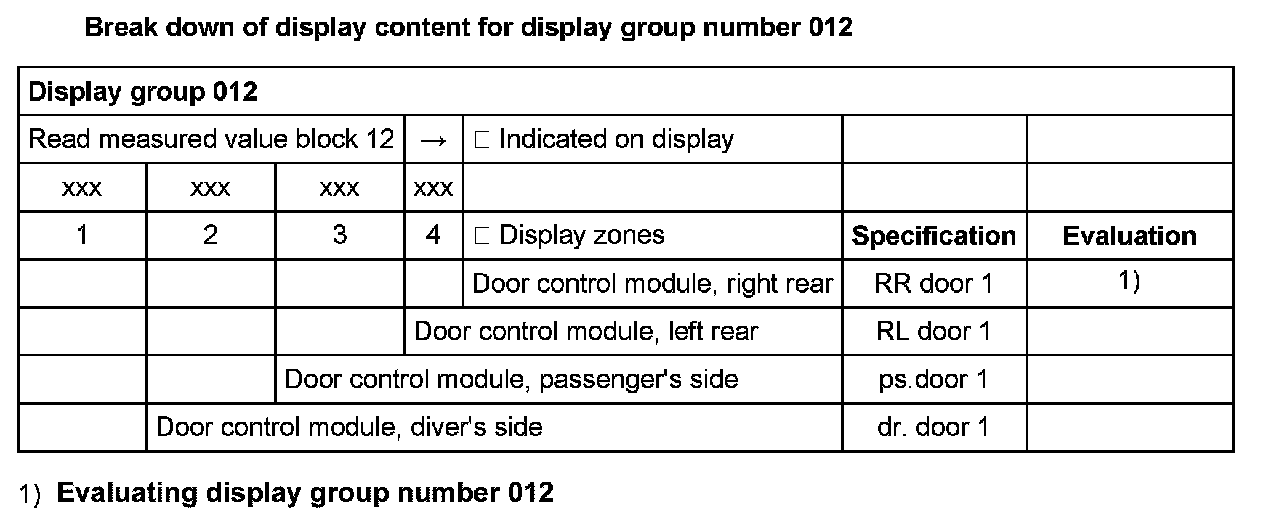

Display Group 012
Display Group 012
Display Group 012
Display Group 012:

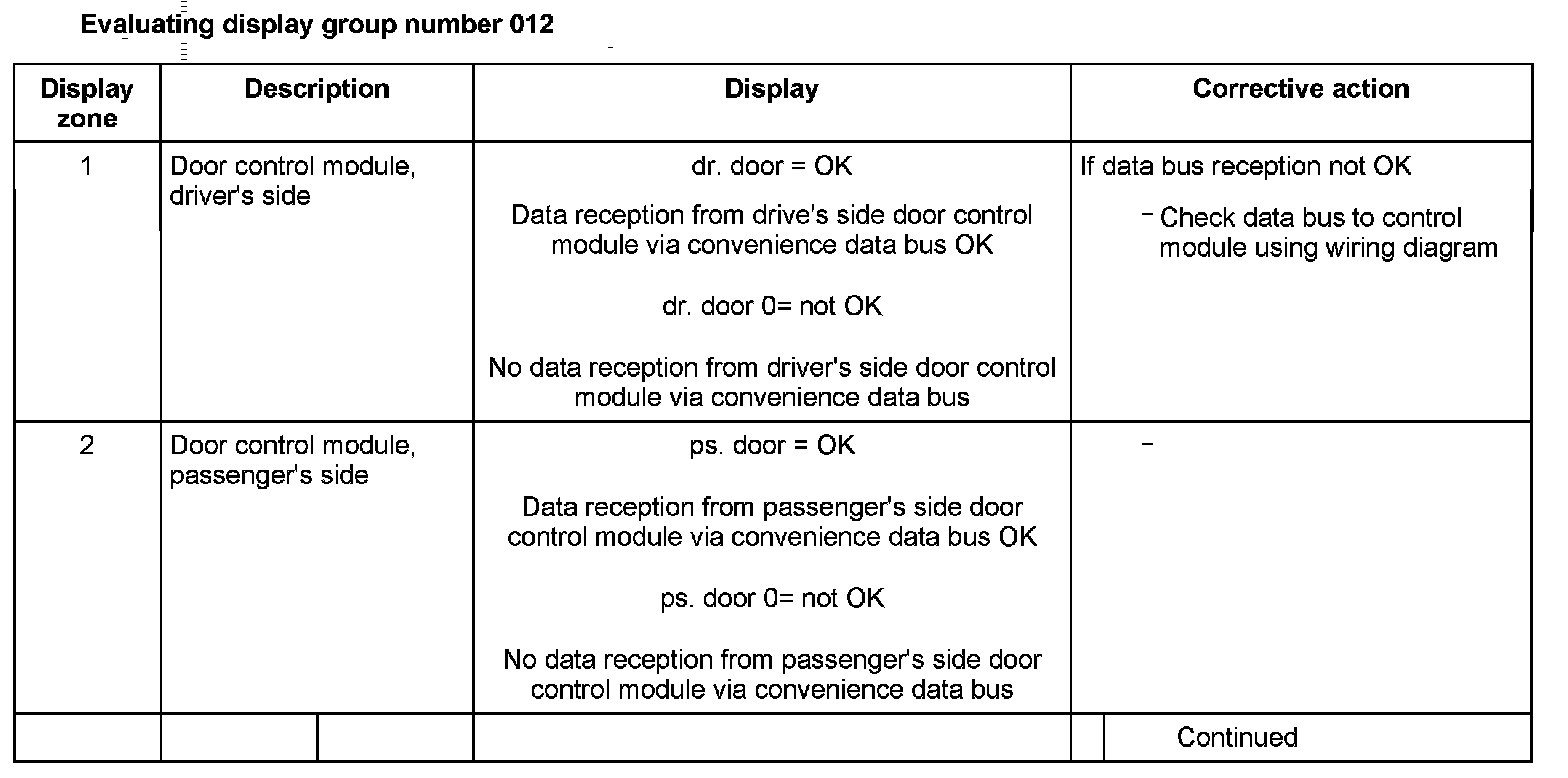

Evaluation For Display Group 012
Display Zone 1 - 2:
Display Zone 3 - 4:
