Central Locking, on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>

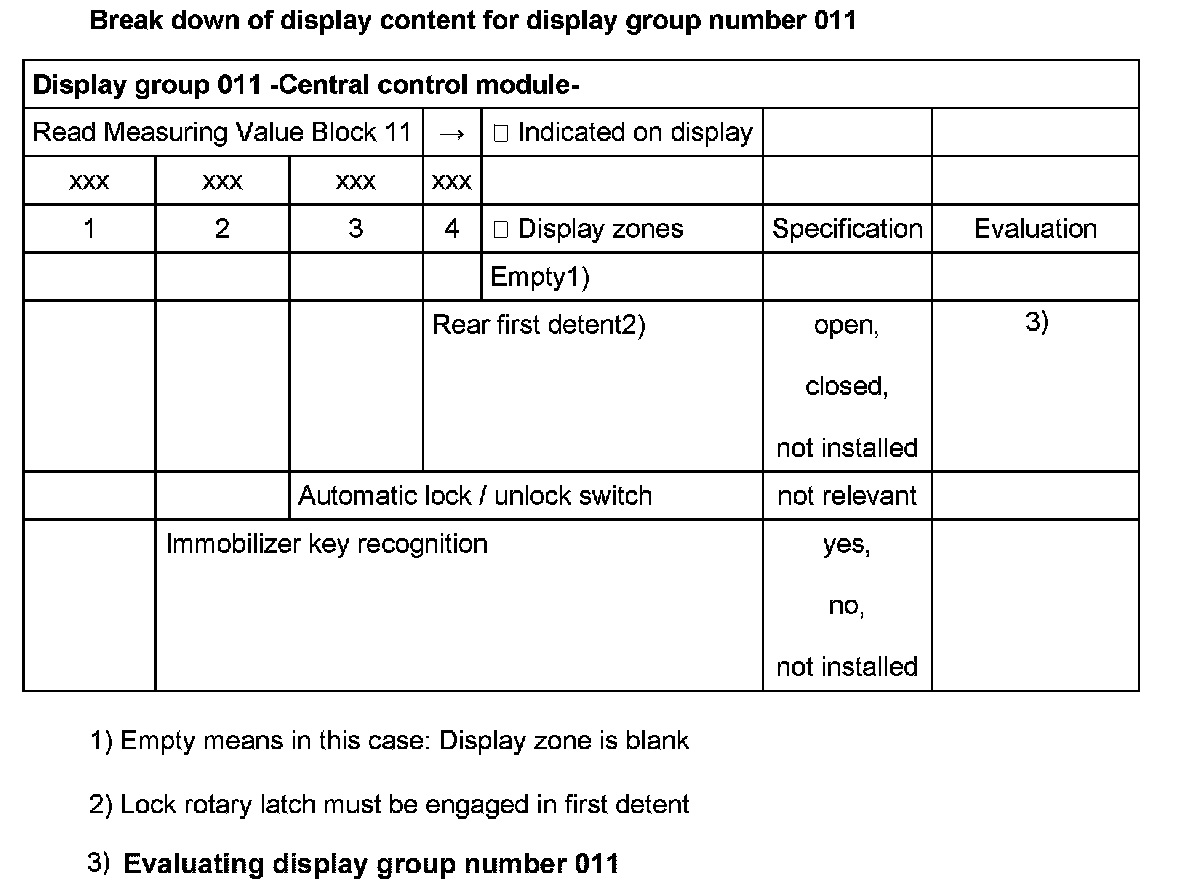

Display Group 011
Display Group 011
Display Group 011
Display Group 011:

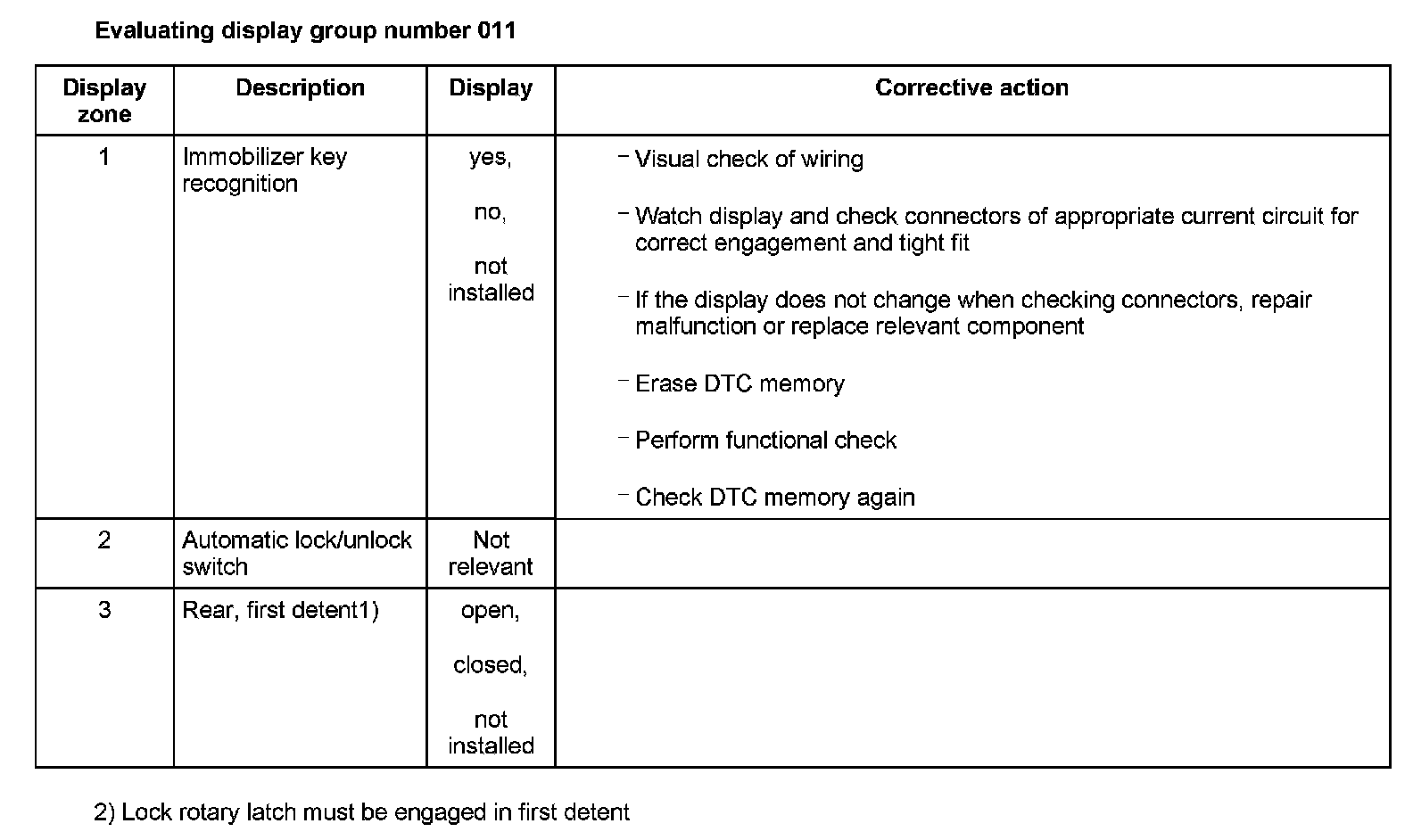

Evaluation For Display Group 011
Display Zone 1 - 3:
