Golf (1J1) L4-2.0L (AVH)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Central Locking, on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>

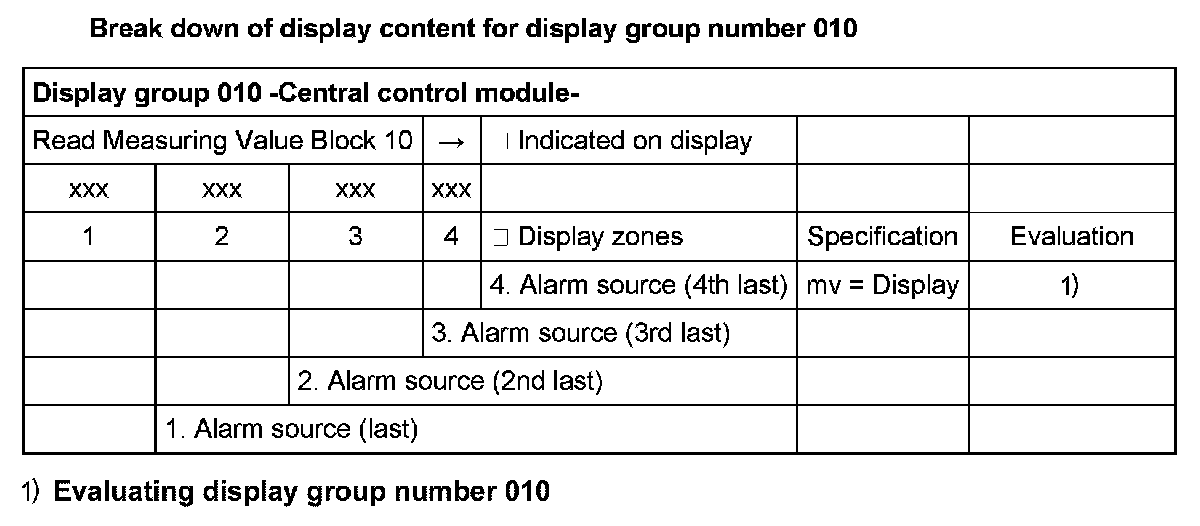

Display Group 010
Display Group 010
Display Group 010
Display Group 010:

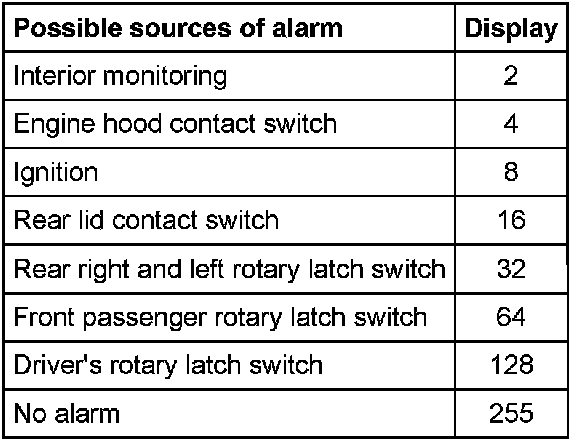

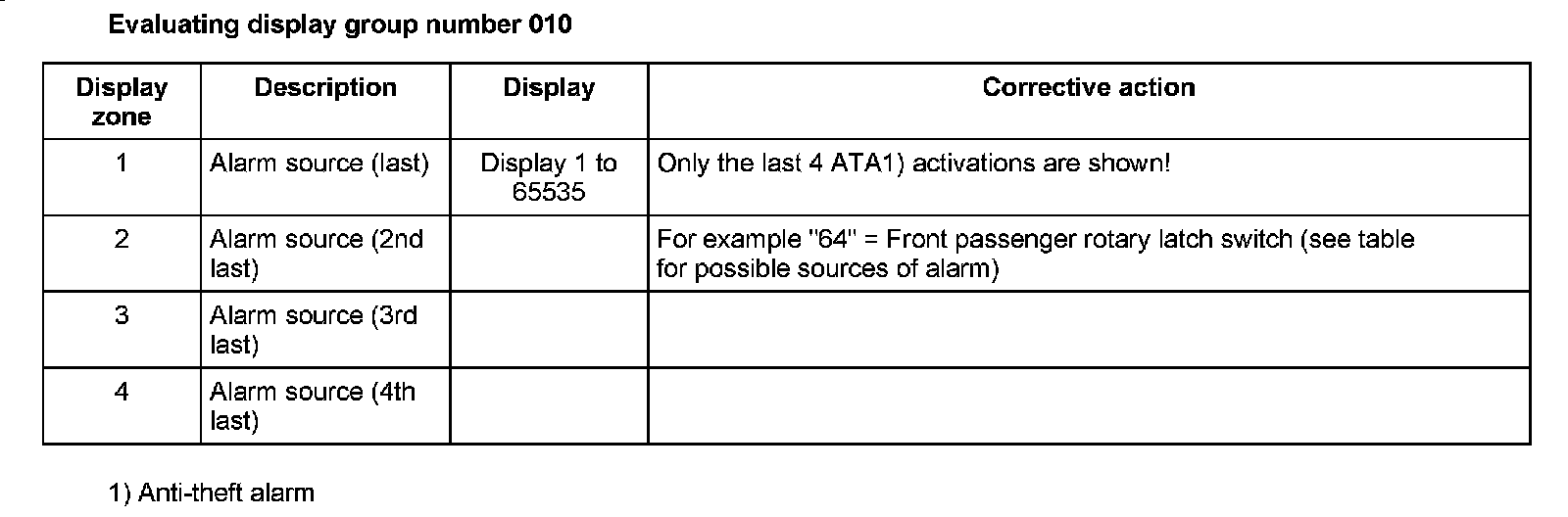

Evaluation For Display Group 010
Display Zone 1 - 4:
