Central Locking, on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>
Display Group 003
Display Group 003
Display Group 003

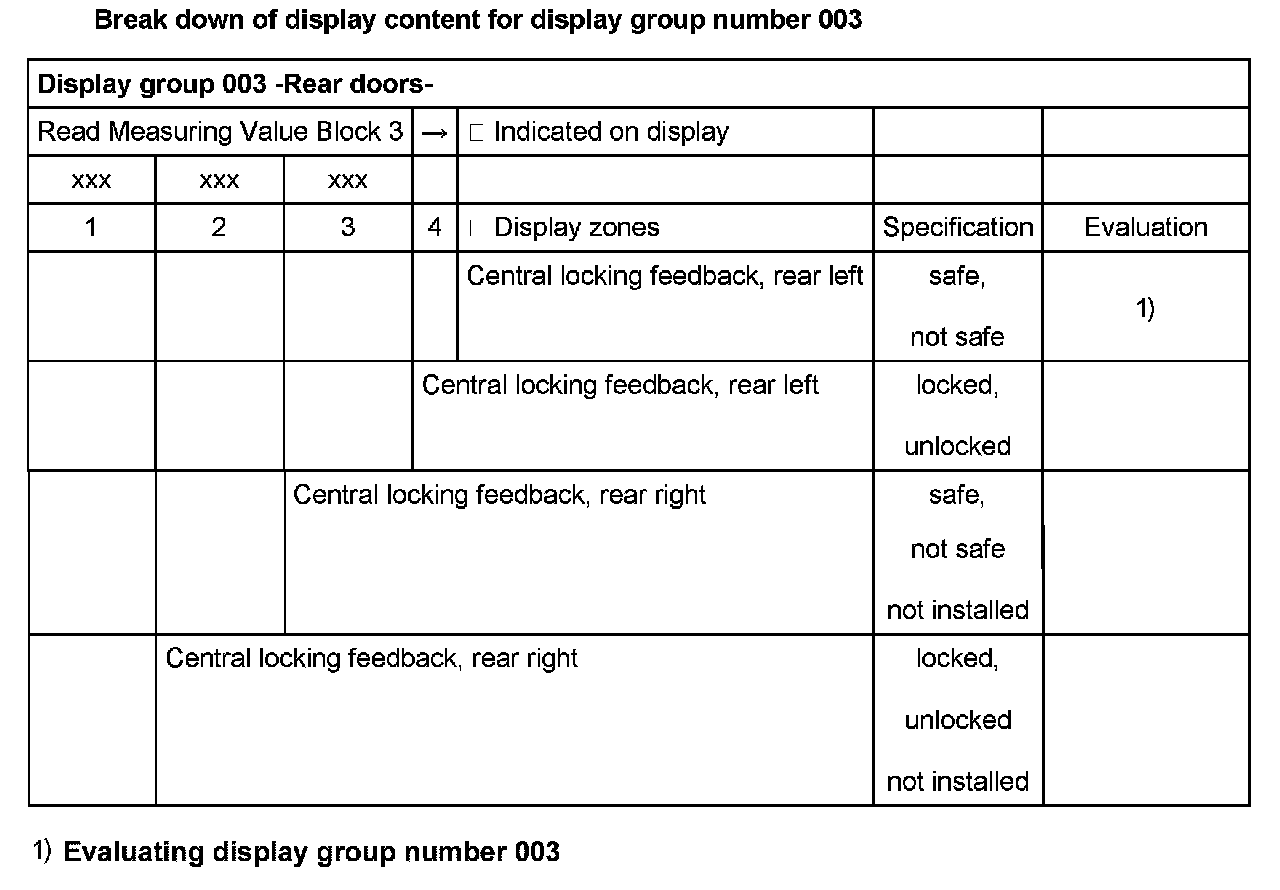

Display Group 003:

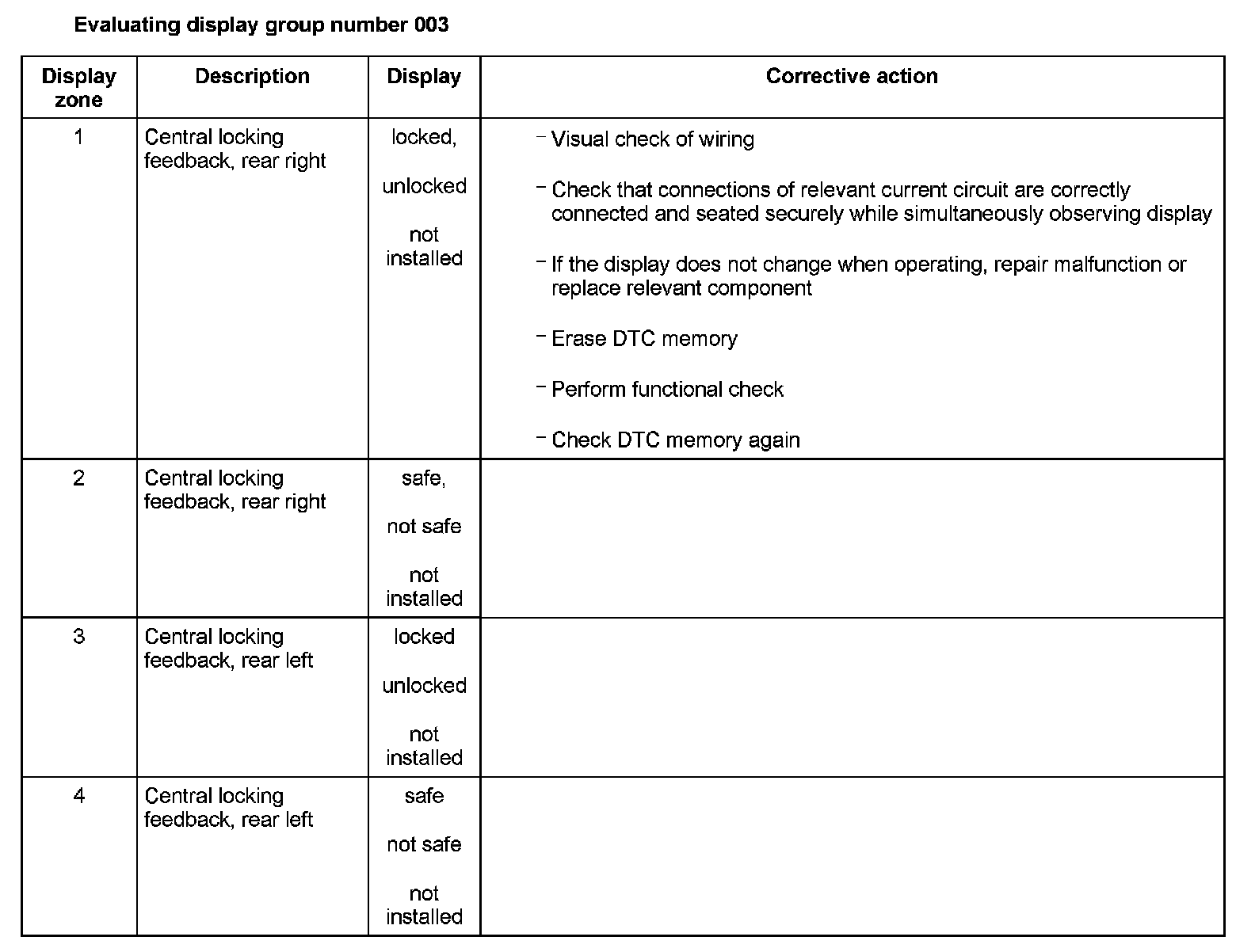

Evaluation For Display Group 003
Display Zone 1 - 4:
