Control Module Version, Checking

Check Control Module Version

- Connecting scan tool. Scan Tool Connecting
- Initiating On Board Diagnostic (OBD). On Board Diagnostic (OBD) For Convenience System, Initiating
- Switch on ignition.
- Press button -1- for "Rapid data transfer" mode.
- Switch on printer with Print button (warning lamp in button lights up).
- Press buttons -0- and -1-.

Indicated on display:

Rapid data transfer Q
01-Check Control Module Version

- Confirm entry with the -Q- button.

The control module identification will be shown on the V.A.G 1551 scan tool display, e.g.

1C0962258 XX Cent. Lock. 0001 ->
Coding XXXXX WSC XXXXX

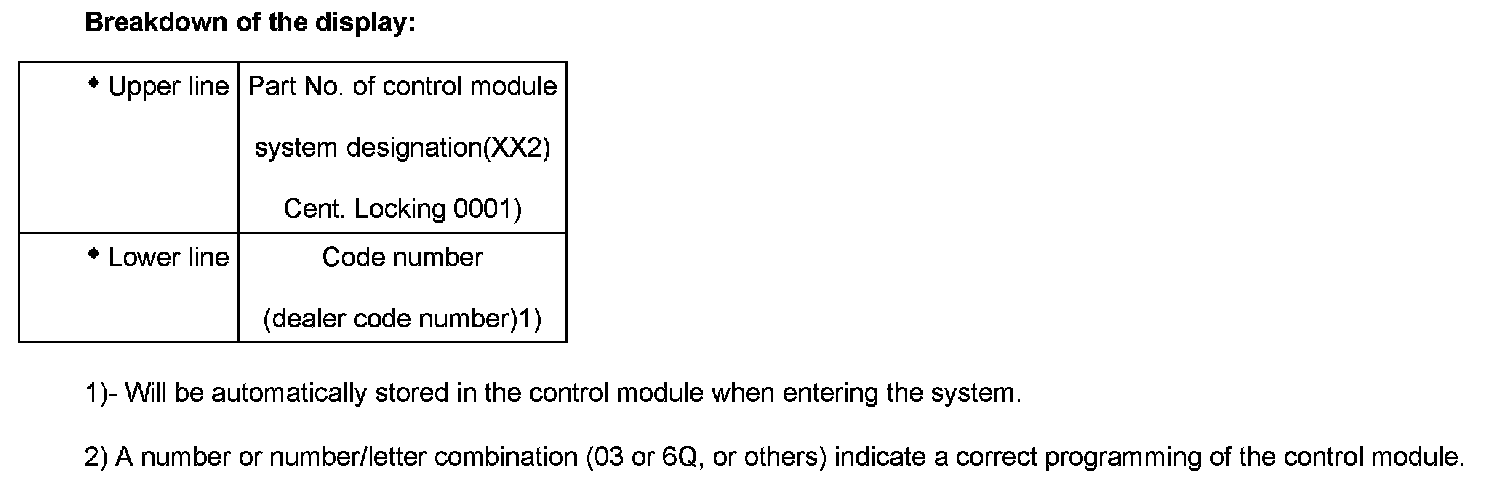

Breakdown of the display:







- Press -> button

Indicated on display:

Rapid data transfer HELP
Select function XX


NOTE:
- If one of the malfunction messages opposite appears in the display, the possible causes of the malfunction can be printed out with the HELP button.
- Ignition must be switched on.
- Malfunctions have occurred at the start of or during the program (external interference?).
- Check diagnosis wires as well as voltage supply and Ground connection.
- Press buttons -0- and -6- to end the output.

Indicated on display:

Rapid data transfer Q
06 End output

- Confirm entry with the -Q- button.

Indicated on display:

Rapid data transfer HELP
Enter address word XX

- Switch off ignition.
- Disconnect connector to V.A.G 1551 scan tool.
