Batteries For the Main Key (Folding) With Radio Wave Remote Control, Removing and Installing

Batteries For The Main Key (folding) With Radio Wave Remote Control, Removing And Installing

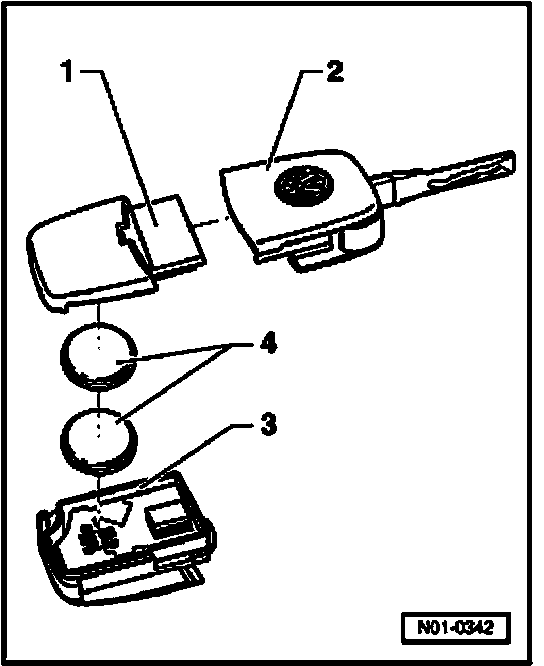

1 - Transmitter unit - upper part (turned-over)
2 - Main key with variable code transponder
3 - Transmitter unit - lower part
4 - Key battery

Removing

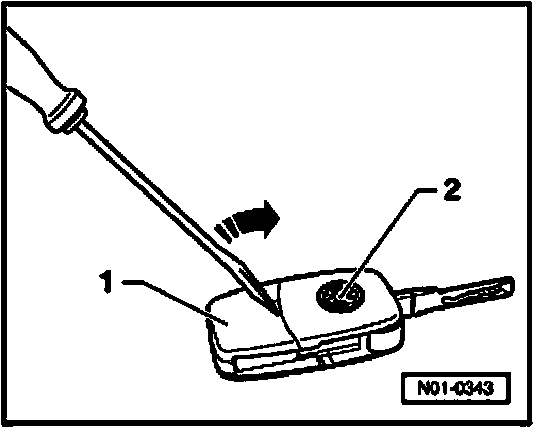

- Insert a screwdriver in the slot between the transmitter unit -1- and the main key -2-.
- Move the screwdriver in direction of arrow and unclip the transmitter unit from the main key.







- Press the transmitter unit apart in direction of arrow.

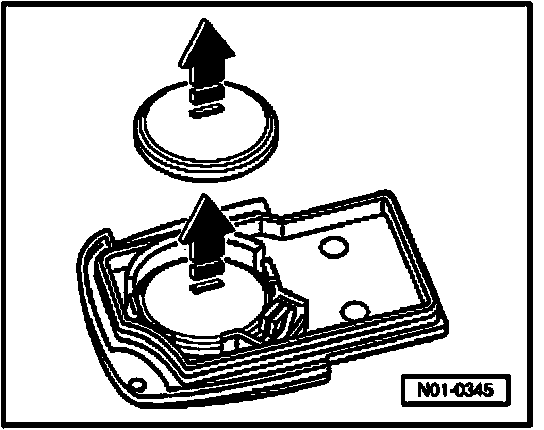

- Unclip batteries from the retainers in direction of arrow using a screwdriver.

Installing
Note the polarity and correct position when installing the batteries.

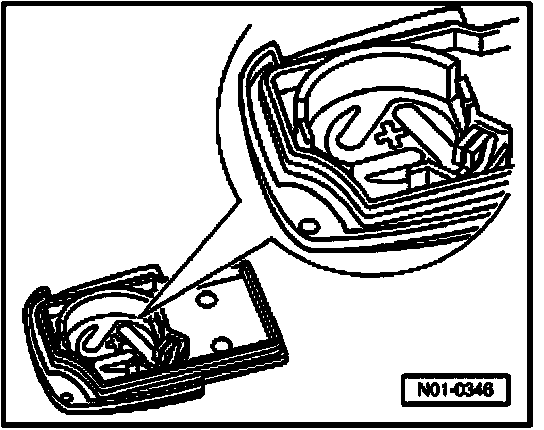

- Place the battery with the positive terminal downwards into the sensor unit (positive terminal is marked on housing).
- Engage battery in transmitter body by pressing down lightly.

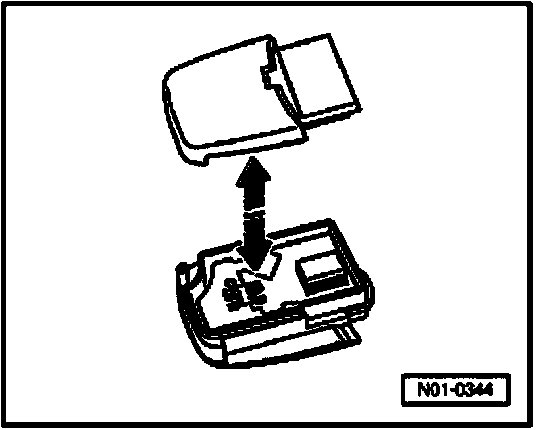

- Install cover on transmitter body (do not damage seal).
- Then engage the transmitter unit with the main key.
