Transmission Control Systems

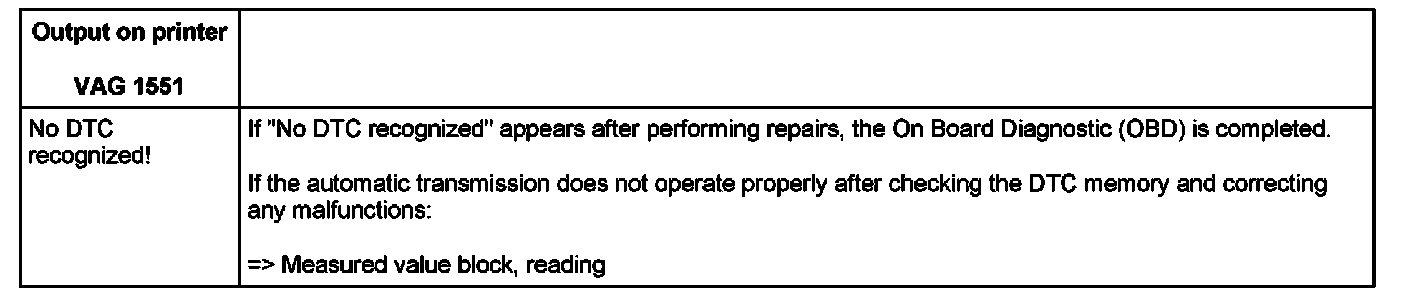

Diagnostic Trouble Code (DTC) table, 01M, 4 Spd. A/T
^ All the possible DTCs which are recognized by the Transmission Control Module -J217- and displayed on the VAG 1551 Scan Tool with the printer switched on, are listed below grouped according to the DTC number.
^ If malfunctions occur only occasionally or if the DTC memory was not erased after correcting the malfunctions, these will be displayed as sporadic malfunctions for a stipulated period of time go to TCM -J217- recognition.
^ If components are indicated as being faulty when the DTC memory is checked, additionally test wiring to the components for short and open circuits according to the wiring diagram go to Electrical Wiring Diagrams, Troubleshooting and Components binder.
^ The and the type of malfunction in numbers is printed out in the rapid data transfer mode only when the printer of the VAG 1551 Scan Tool is switched on.
Example: DTC (5-digit) 65535 XYZ (type of DTC, 3 digits - this 3-digit indicator is not covered in the table)
^ With the 7.0 program card, the DTC type is described in text below the affected component.
