02J, 5 SPD. M/T

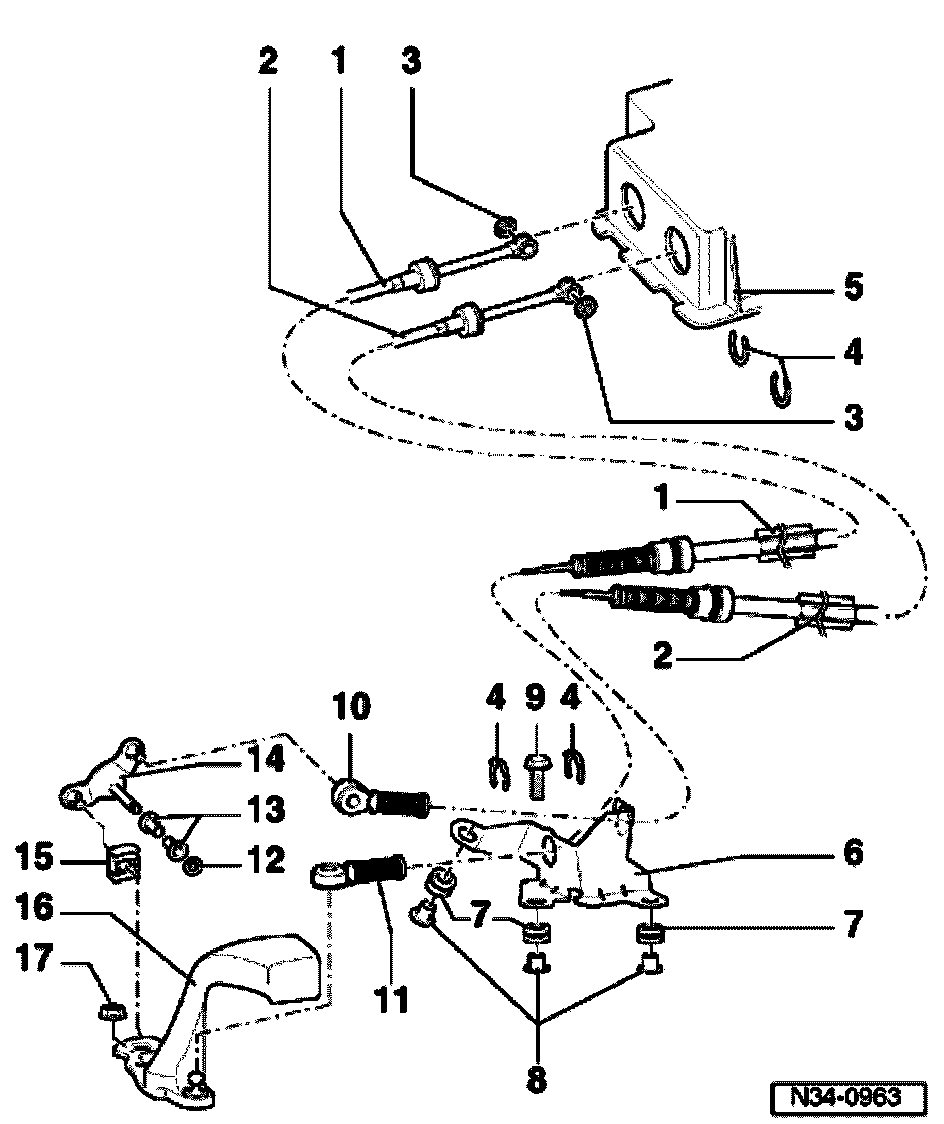

Selector cables, removing and installing, 02J, 5 Spd. M/T





Note: Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.

1 - Gear selector cable
^ Press onto gear shift guide

2 - Gate selector cable
^ On gate selector bracket

3 - Circlip
4 - Circlip
^ Do not damage cable when removing

5 - Selector housing
6 - Support bracket
7 - Bushing
^ Support bracket mounting to transmission

8 - Distance piece
9 - Hex bolt, 25 Nm
^ For support bracket

10 - Cable locking mechanism
^ For gate selector cable to relay lever
^ Replace after removing from relay lever -item 14-
^ From 01.01 with holes
^ Not necessary to be replaced
^ Secured with securing clip

11 - Cable locking mechanism
^ For gear selector cable to gear selector lever
^ Replace after removing from transmission selector lever -item 16-
^ From 01.01 with holes
^ Not necessary to be replaced
^ Secured with securing clip

12 - Circlip
13 - Bushing
14 - Relay lever
15 - Shoe
16 - Transmission selector lever
^ With balance weight
^ Install so that master spline aligns with selector shaft
^ After installing adjust gear selector mechanism

17 - Hex nut, 20 Nm
^ Always replace

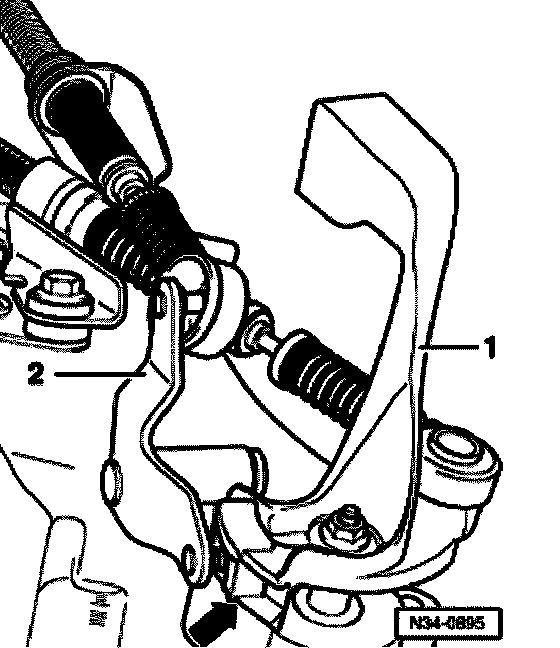

Installation position of transmission selector lever/relay lever
1 - Gear selector lever
With balance weight
2 - Relay lever
Locates in guide rail of gear selector lever via shoe (arrow)
