Gear Oil, Checking

Gear oil, checking, 02J, 5 Spd. M/T
- Remove insulation tray below engine/transmission, if fitted.

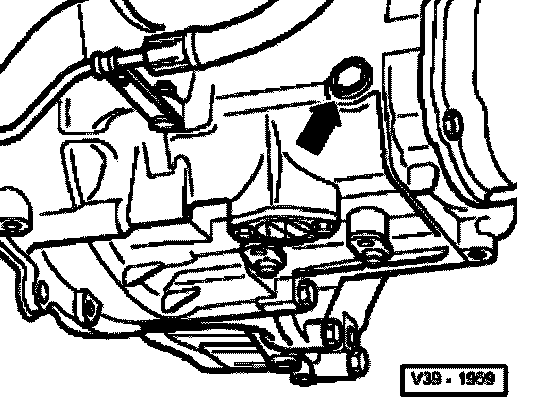

- Remove plug (arrow) to check oil

The oil level is correct when the transmission is full to the lower edge of the filler hole.

- Install plug (arrow).

When filling with new oil note following:
- Remove plug (arrow).
- Top up oil to lower edge of filler hole.
- Install plug (arrow).
- Start engine, engage gear and allow transmission to turn for approximately 2 minutes.
- Switch off engine and remove plug (arrow).
- Top up oil to lower edge of filler hole again.
- Install plug (arrow).
